Removing Pulley (Vibration Damper)

> 9679/3 - Counter-hold tool with the rectangular tube from > 9732 - holding wrench must be inserted into the vibration damper and turned until it locks. > Counter-hold tool in vibration damper

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

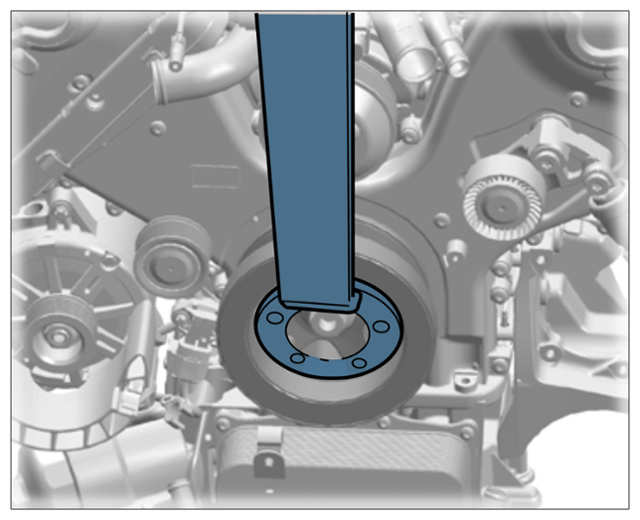

Counter-hold tool in vibration damper

NOTIFICATION

Incorrect handling of tools
- Risk of damage to the body
  - Only use tools approved by Porsche.
  - Always ensure that the tool is seated correctly.
  - Protect the body and interior of the vehicle from damage with protective covers.
  - Cover delicate components with cardboard or sheetmetal panels.
Information

Protect the radiator fins using cardboard or a sheetmetal panel to prevent damage.

Cover wing and peripheral parts to protect them.
Fit the large torque wrench or T-piece -2- . Use a tubular handle if necessary
1. Undo the central screw of the damper. Do not use the screw again.
2. Use a tubular handle -1- if necessary.
3. IMPORTANT: Loosening torque is very high.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

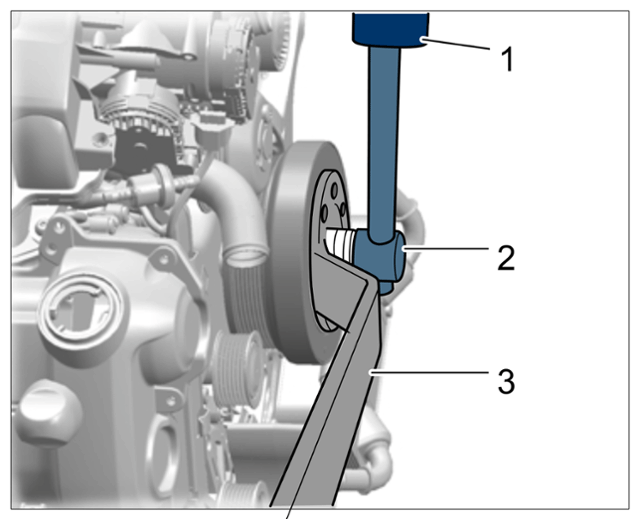

Use of tool for vibration damper
Remove central screw and pull vibration damper down and forward. > Vibration damper

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

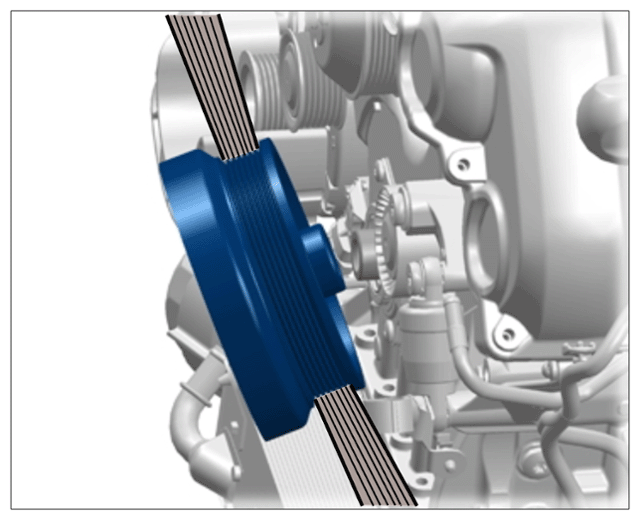

Vibration damper
