Remove Belt TENSIONER Damper

  1. Unscrew screws -3-  and remove belt tensioner damper.
    G14736090Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Belt drive

  2. The connecting screw -Arrow-  does not  have to be loosened in order to remove it.

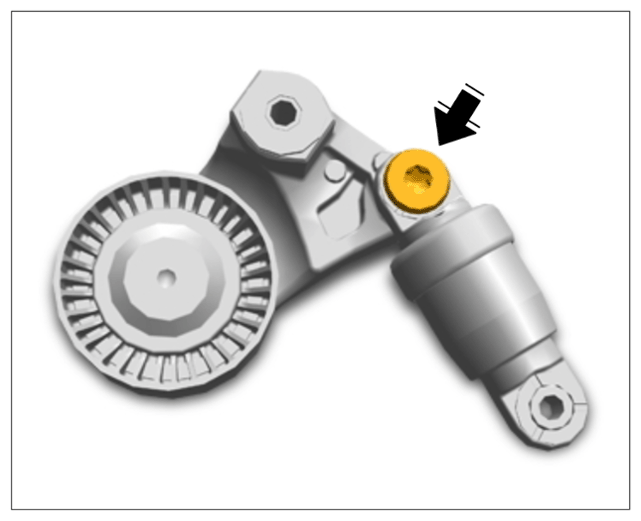

    G14736091Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Damper/tensioner
