Removing Drive Plate

  1. Mark installation position of the drive plate with respect to the crankshaft using a felt-tip pen.
  2. Block drive plate.
    1. > 9538/1 - Toothed segment  must be attached to a threaded bore at the bottom of the oil guide housing so that at least one tooth engages with the ring gear.
  3. Remove drive plate -2-  .
    1. Loosen and unscrew screws -1-  in diagonally opposite sequence and in several steps.
    2. Remove drive plate.

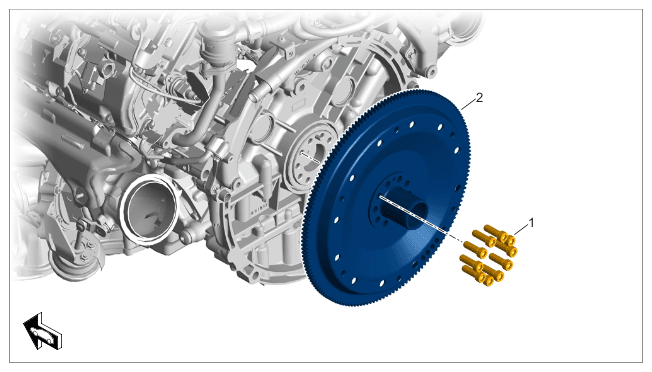

    G14736089Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Drive plate
