Home >> Porsche >> 2018 >> Cayenne Base >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> 10 - Engine - Crankcase, Suspension -- 92AAB1 Cayenne S (3.6L) >> WM, 103719 Removing And Installing Torque Support >> Removing Torque Support

Removing Torque Support

  1. Remove torque support -1-  .
  2. Unscrew nuts -4-  and pull out screws -2-  and -3-  .
  3. Remove torque support by lifting it upwards.

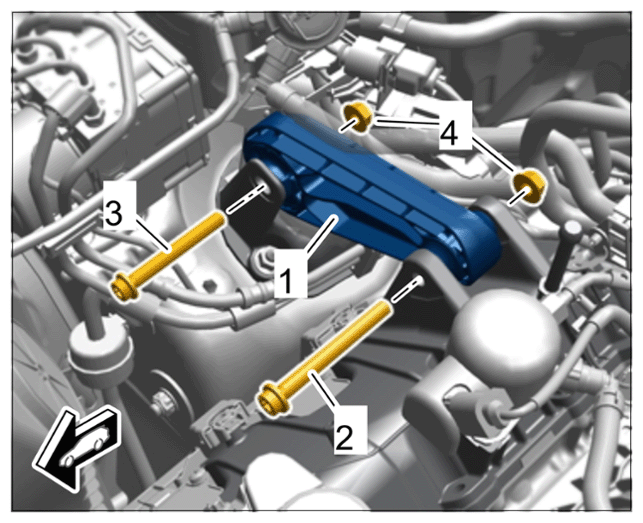

    G14735531Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Torque support
