Engine Mounting

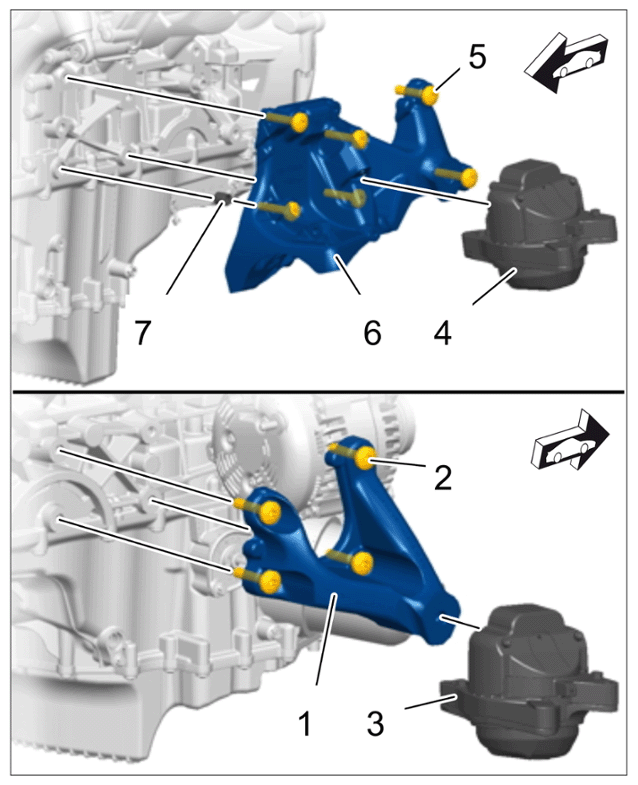

Fig 1: Engine Mounting Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine mounting

1. Bracket for engine mount, right
2. Screw, M10 x 45 > Tightening torque 65 Nm (48 ftlb.)  ↓
3. Right engine mount
4. Left engine mount
5. Screw, M10 x 45 > Tightening torque 65 Nm (48 ftlb.)  ↓
6. Bracket for engine mount, left
7. Dowel sleeve, 14m 6x 15

   Not Screw (M12 x 1.5) securing engine mount to bracket/replace  > Initial tightening 90 Nm (67 ftlb.)  ↓

   shown Final tightening + 90°
