Removing Engine Mount

WARNING: Danger of objects or loads falling down
  • Risk of squashing or crushing
  • Secure components to prevent them from falling down.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

Information

The pictures shown in this document may differ from the original.

  1. Disconnect coolant line -1-
    1. Unscrew and remove screws -2-  and -3-  .

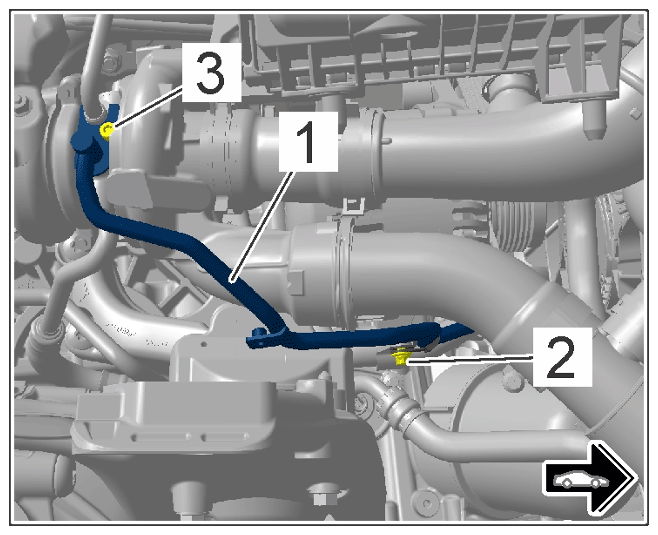

      G14735529Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Coolant line on turbocharger

  2. Remove engine mount -1-
    1. Lift and secure the cover -2-  .
    2. Unscrew screw -3-  and remove engine mount

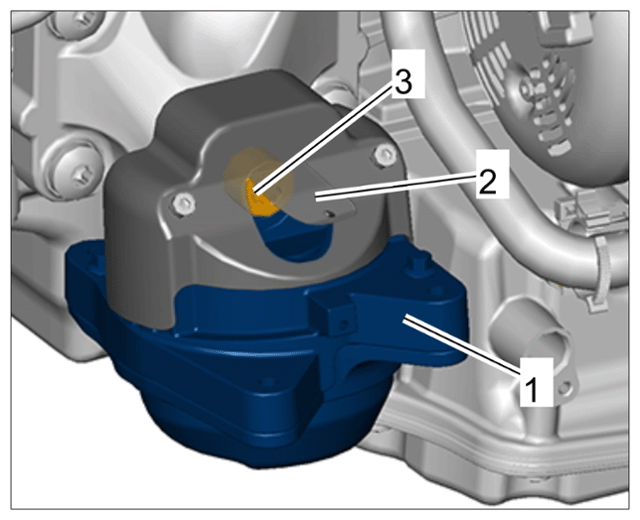

      G14735530Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Engine mount (similar illustration)
