Tools And Materials: Tools

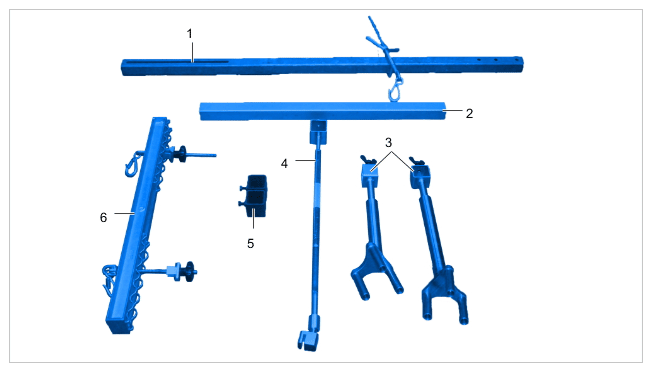

G14735504Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tools for supporting the engine on the body

  1. > 10-222A - Catching fixture
  2. > T40091/1 - Pipe
  3. > T40091/52-53  - Support in combination with head of > T40091/50-51 - support
  4. > T40093/3P - Support  with > T40093/51 - adjustable foot
  5. > T40091/3  - Joiner
  6. > 3033  - Lifting tackle
