Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Pressure accumulator to body | Item 2: Hexagon-head bolt, M6x 16/observ e installation sequence for screws 1-3' | Tightening torque | 8 Nm (6 ftlb.) | ||
|

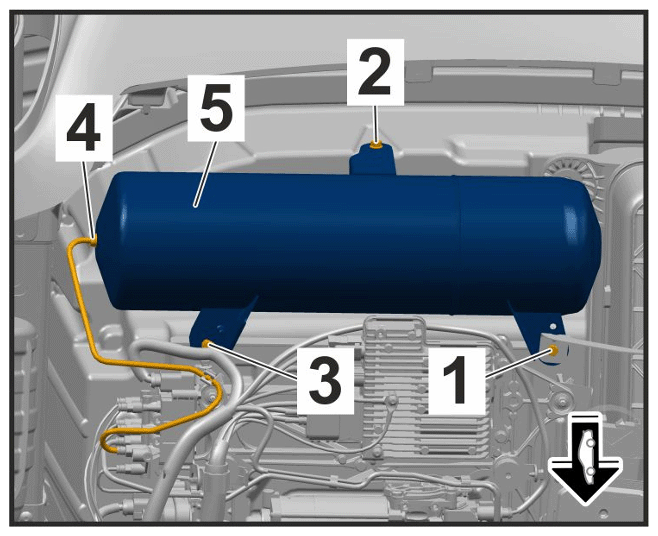

Mounting for pressure accumulator |
|||||
| Pressure accumulator air line | Item 4: Union nut | Tightening torque | 5 Nm (3.5 ftlb.) | ||
|
Mounting for pressure accumulator conventional |
