Component Overview

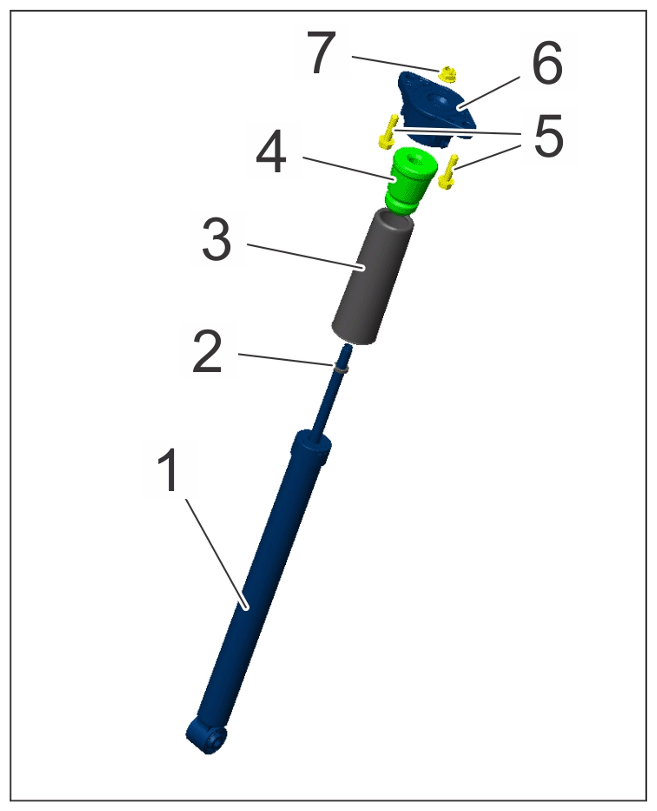

Fig 1: Rear Shock Absorber And Spring Damper Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Individual components of rear shock absorber/spring damper

1	Spring damper/shock absorber
2	Support washer
3	Boot
4	Rubber stop
5	Screws, M10x42
6	Shock absorber mounting
7	Nut, M14
