Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

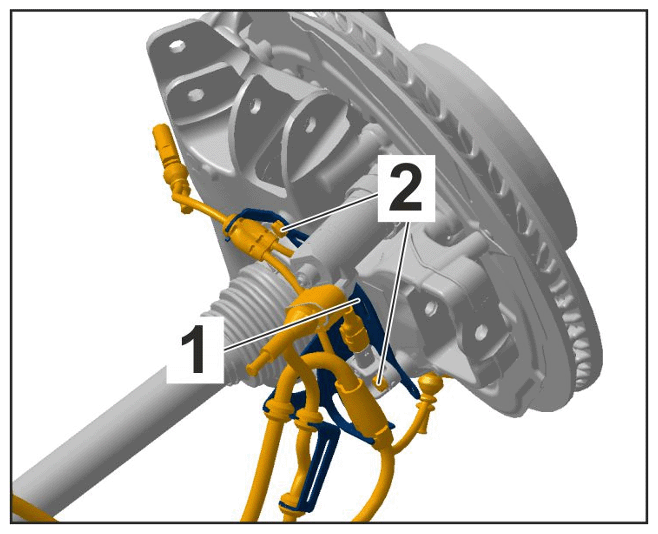

| Sensor for body with cable holder to wheel bearing housing | Item 2, bottom Hexagon-head bolt, M6x25 | Tightening torque | 8 Nm (6 ftlb.) | ||
|
Cable holder mounting |
|||||

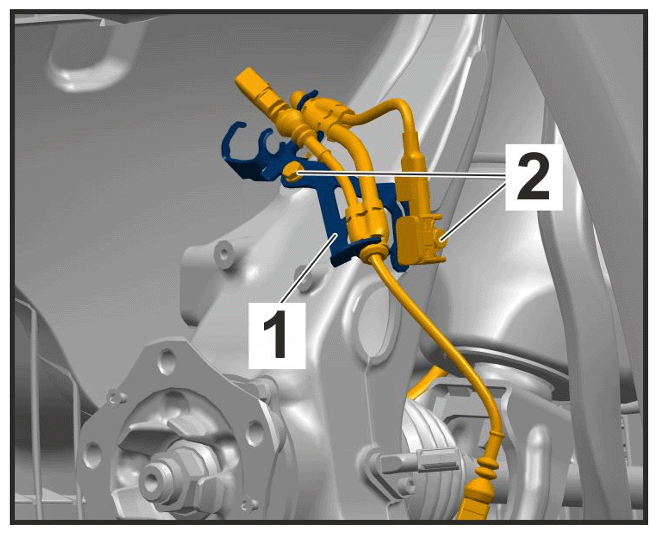

| Sensor for body with cable holder to wheel bearing housing | Item 2: Hexagon-head bolt, M6x25 | Tightening torque | 8 Nm (6 ftlb.) | ||
|
Cable holder mounting |
|||||
| Body sensor to front body | Counters unk screw, M6 x20 | Tightening torque | 8 Nm (6 ftlb.) | ||
| Body sensor to rear body | Counters unk screw, M6 x20 | Tightening torque | 8 Nm (6 ftlb.) |
