Installation Position
A total of eight body sensors are installed in the vehicle.

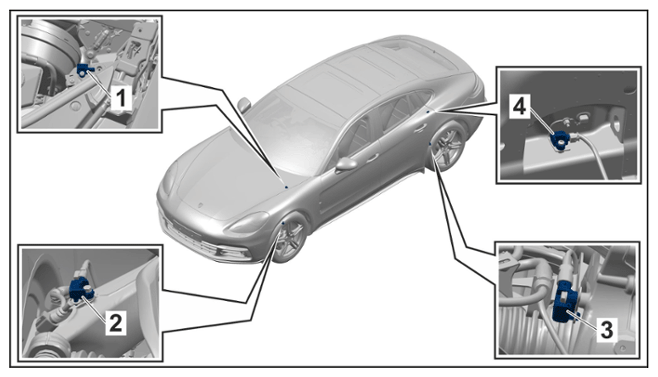

Installation position
| 1 | In the plenum panel (under cowl panel cover) > WM, 508719 REMOVING AND INSTALLING COWL PANEL COVER |
| 2 | On the front wheel bearing housing |
| 3 | On the rear wheel bearing housing |
| 4 | In the luggage compartment (behind the side trim panel) > WM, 700319 REMOVING AND INSTALLING SIDE TRIM PANEL FOR REAR LUGGAGE COMPARTMENT - Coupe or WM, 70031930 REMOVING AND INSTALLING SIDE TRIM PANEL FOR REAR LUGGAGE COMPARTMENT - Wagon |
