Removing Valve Unit

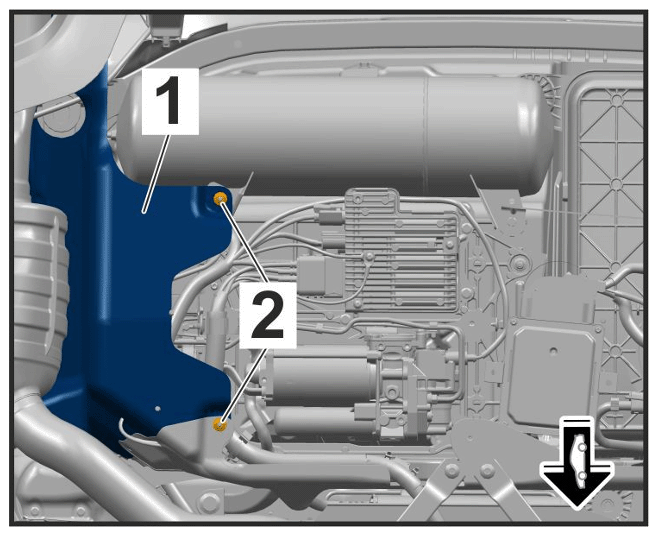

Remove heat protection panel -1- at the bottom from the bolts and press it aside slightly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat protection panel mounting

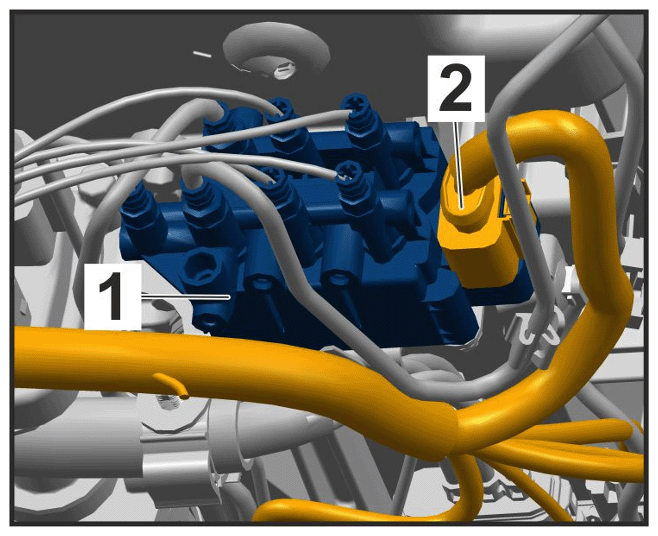

Release and disconnect electric plug connection -2- on the valve unit -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection on the valve unit

Information

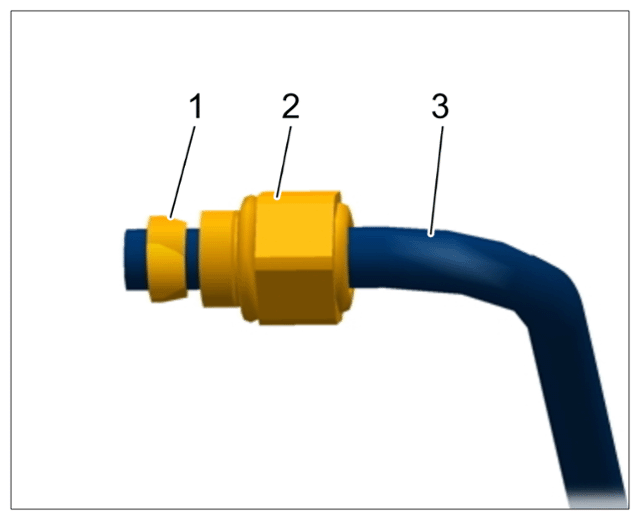

The cutting ring -1- and Voss threaded joint -2- must remain on the air line -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air line

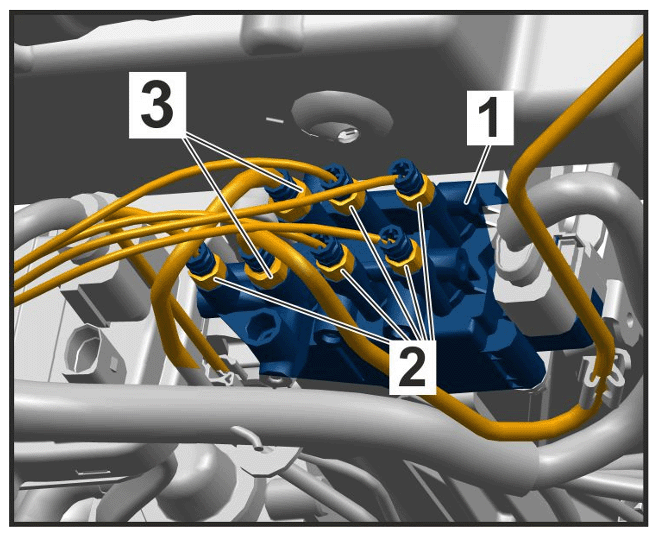

Remove air lines on valve unit -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for air lines on valve unit
1. 3.1 Unscrew Voss threaded joints -2 and 3- and pull off air lines

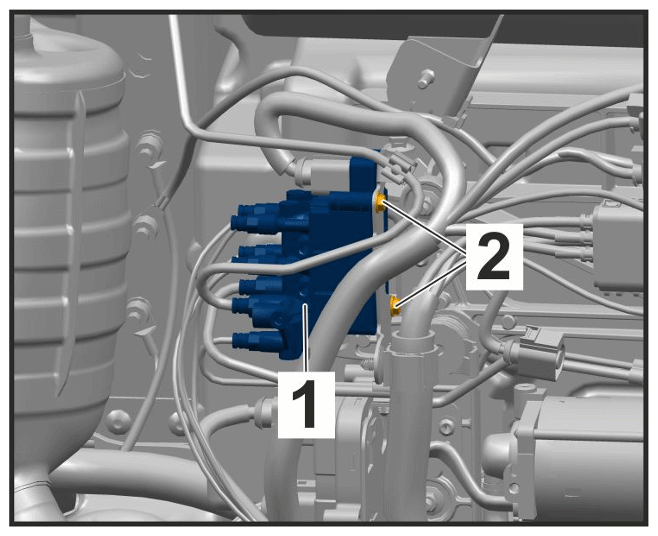

Remove valve unit -1-.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for valve unit
1. 4.1 Unscrew fastening screws -2- .
