Technical Values

Location	Description	Type	Basic value
Holder for air supply system to body/HV battery (PHEV)	Items 1-4: Hexagon nut, M6/observe installation sequence for nuts 1-4!	Tightening torque	8 Nm (6 ftlb.)

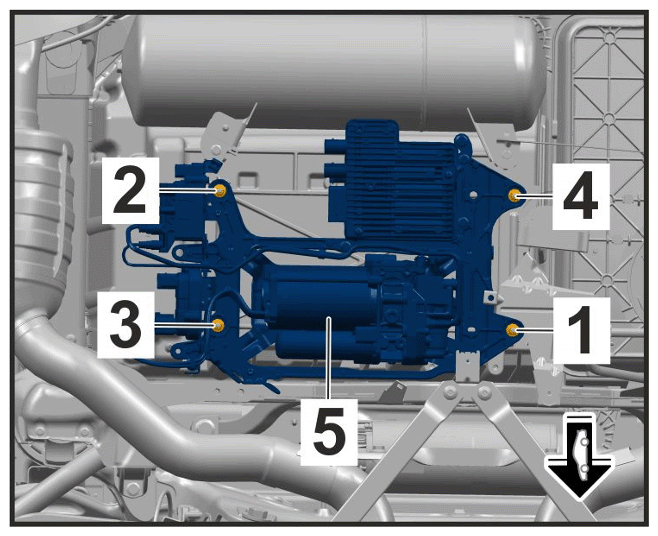

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for levelling system
Air line to valve unit	Item 3: Union nut (air connection 6 mm)	Tightening torque	3 Nm (2 ftlb.)

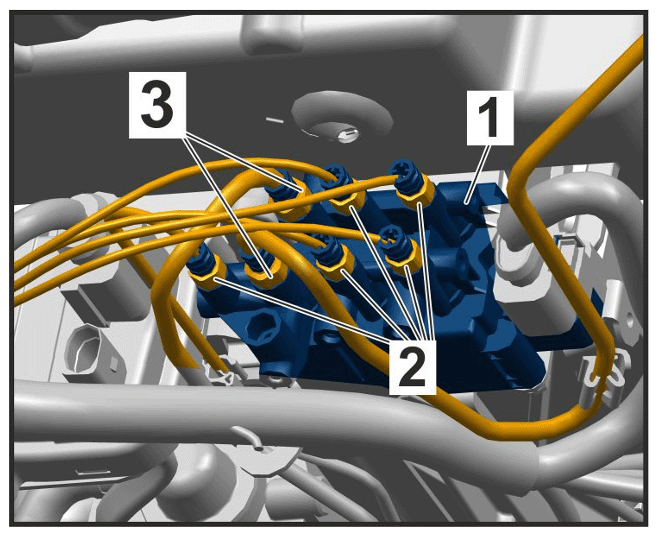

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for air lines on valve unit
Air line to valve unit	Item 2: Union nut (air connection 4 mm)	Tightening torque	2 Nm (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for air lines on valve unit
Air line to compressor	Item 4: Union nut (air connection 6 mm)	Tightening torque	3 Nm (2 ftlb.)

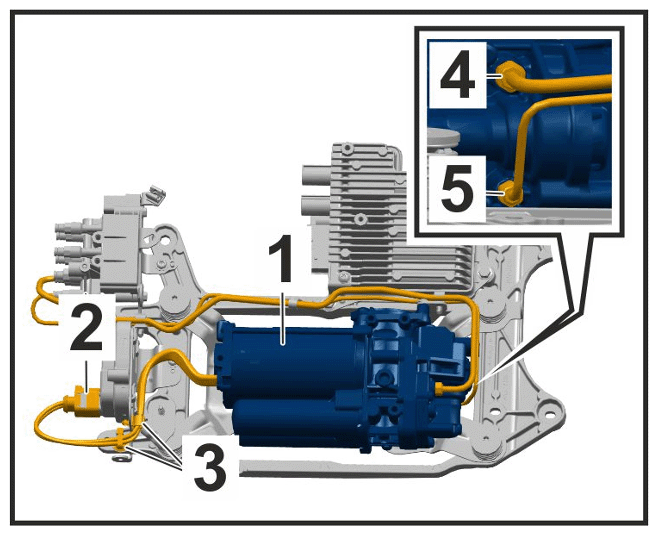

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for lines on compressor
Air line to compressor	Item 5: Union nut (air connection 4 mm)	Tightening torque	2 Nm (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for lines on compressor
Compressor to holder	Items 1-3: Hexagon roundhead countersunk screw, M6 x 11.5	Observe tightening torque/installation sequence for screws 1-3!	10 Nm (7 ftlb.)

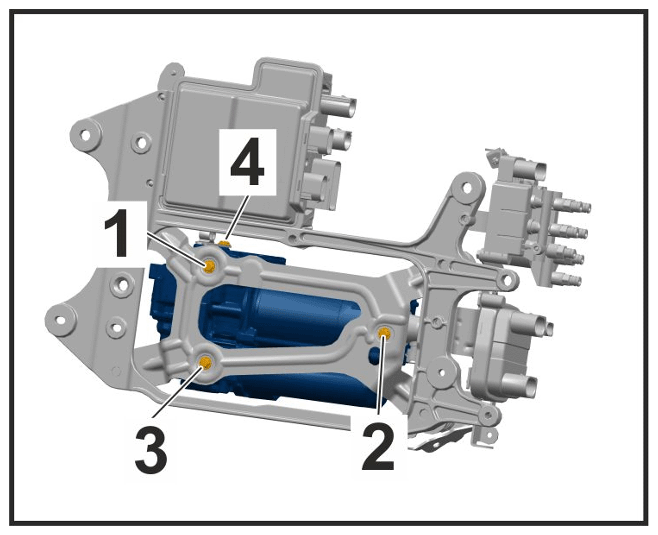

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Compressor mounting
Holder for compressor control unit and levelling unit to holder	Item 2: Hexagon roundhead countersunk screw, M6 x 11.5	Tightening torque	10 Nm (7 ftlb.)

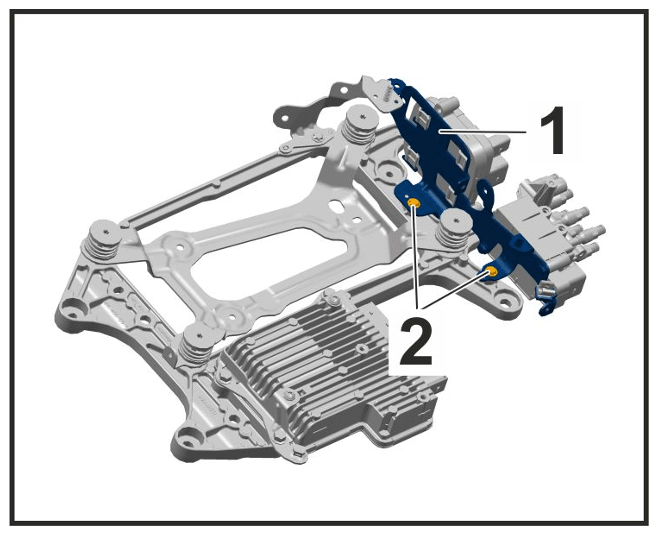

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Replacing compressor control unit
