Removing Compressor

  1. Remove heat protection panel -1-  at the bottom from the bolts and press it aside slightly.

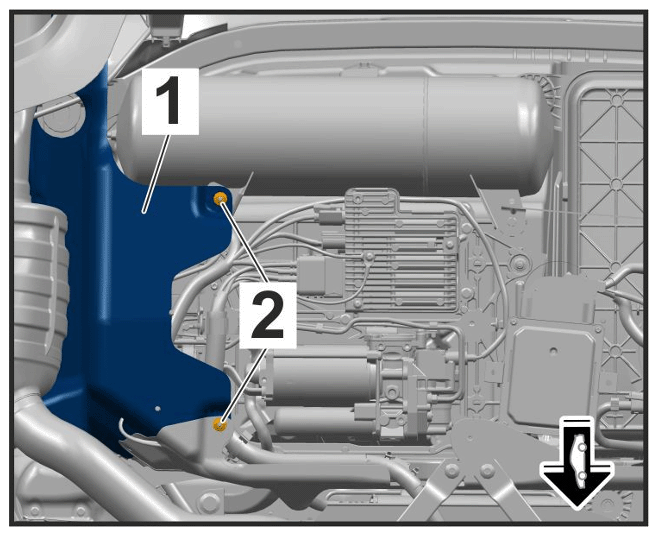

    G15862120Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat protection panel mounting

  2. Disconnect PDCC wire harness at the PDCC control unit (observe specified sequence!).

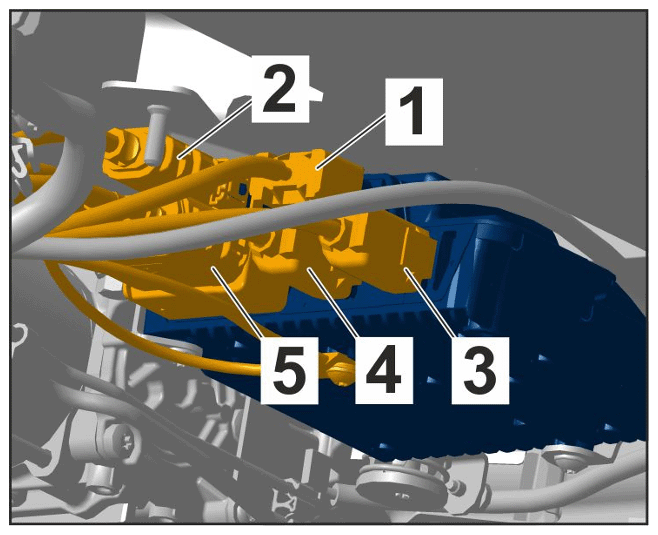

    G15862121Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Sequence for disconnecting the electric plug connections

    1. 2.1 Release and disconnect electric plug connections from the PDCC control unit in the sequence -1 to 5-  .
  3. Expose PDCC wire harness -1-  .

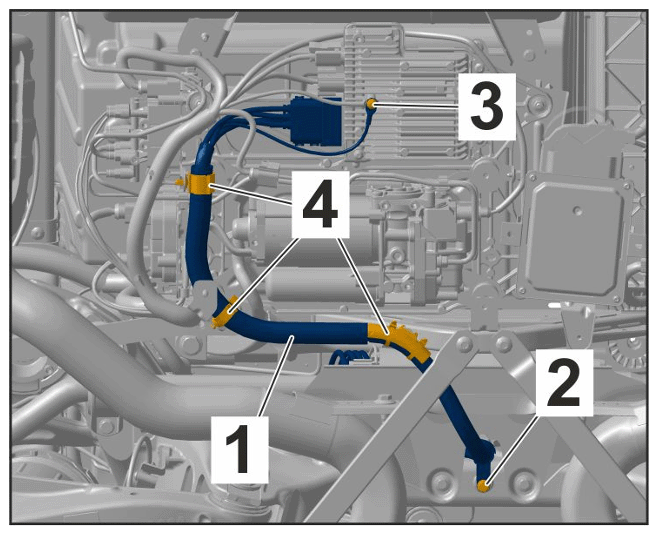

    G15862122Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for PDCC wire harness

    1. 3.1 Unscrew fastening screw for ground line -3-  .
    2. 3.2 Remove PDCC wire harness from the brackets-4-.
  4. Expose wire harness for levelling system -1-  .

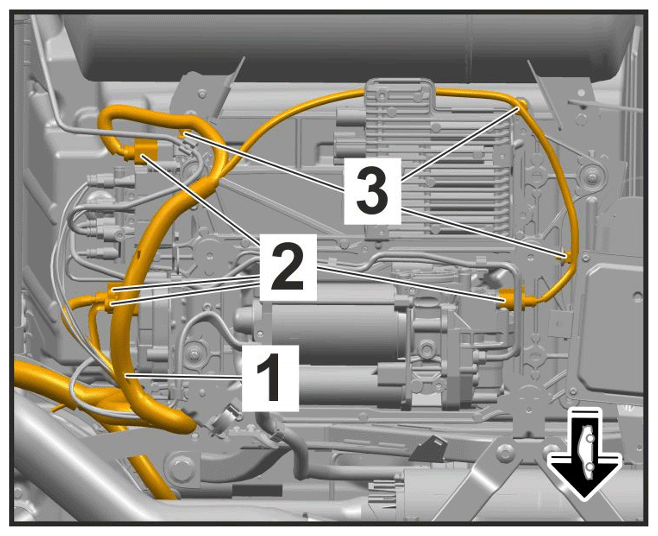

    G15862123Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for wire harness for levelling system

    1. 4.1 Release and unplug electric plug connections -2-  .
    2. 4.2 Loosen brackets -3-  on wire harness for levelling system.

    Information

    The cutting ring -1-  and Voss threaded joint -2-  must remain on the air line -3-  .

    G15862124Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Air line

  5. Remove air lines on valve unit -1-  .

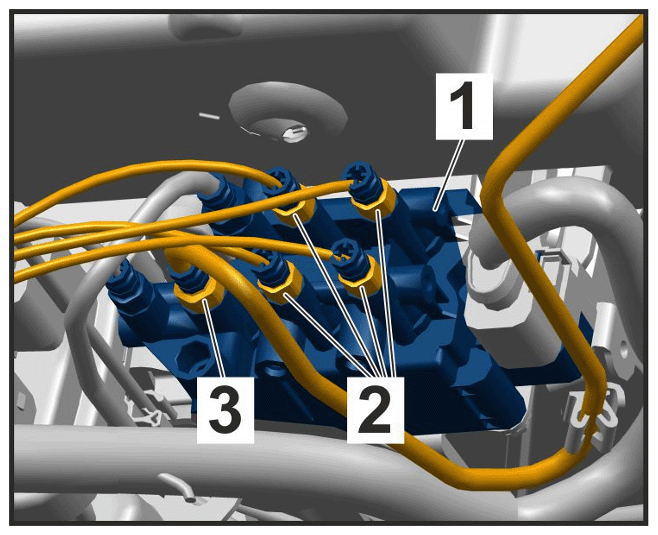

    G15862125Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for air lines on valve unit

    1. 5.1 Unscrew Voss threaded joints -2 and 3-  and pull off air lines

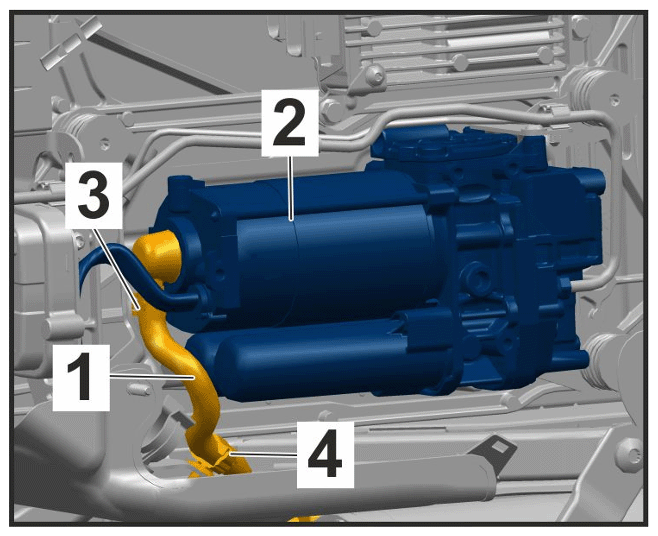

  6. Remove suction line -1-  from the compressor -2-  .
    G15862126Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for suction line on compressor

    1. 6.1 Loosen spring band clamp -3-  and pull off auction line -1-  .
    2. 6.2 Loosen bracket -4-  .
  7. Remove levelling system -5-  .

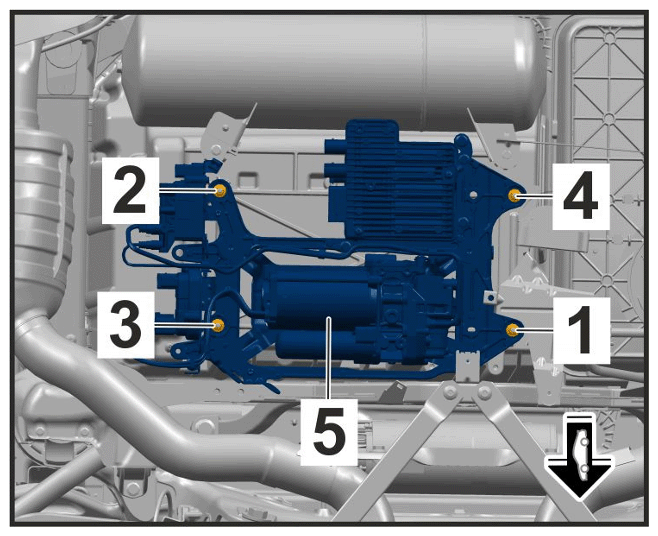

    Fig 1: Levelling System Mounting Nuts Loosening Sequence - Conventional
    G15862127Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Levelling system mounting - conventional

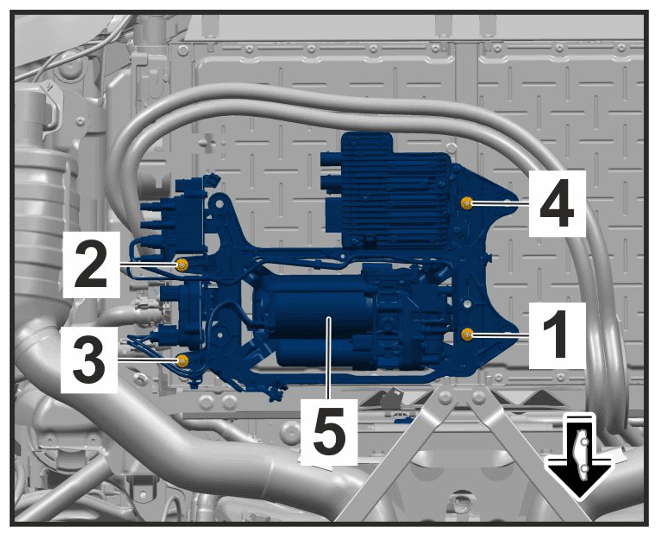

    Fig 2: Levelling System Mounting Nuts Loosening Sequence - PHEV
    G15862128Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Levelling system mounting - PHEV

    1. 7.1 Unscrew nuts -1 to 4-  .
  8. Remove lines on compressor -1-  .

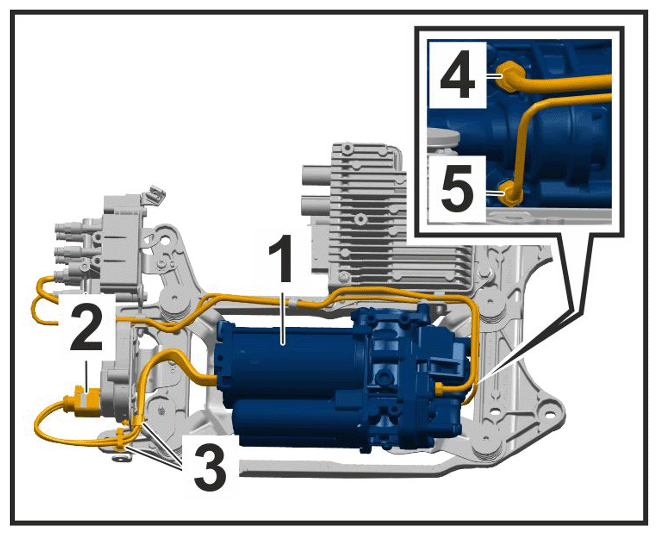

    G15862129Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for lines on compressor

    1. 8.1 Release and disconnect electric plug connection -2-  on the control unit.
    2. 8.2 Loosen brackets -3-  .

      Information

      The cutting ring -1-  and Voss threaded joint -2-  must remain on the air line -3-  .

      G15862130Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Air line

    3. 8.3 Unscrew Voss threaded joints -4 and 5-  for the air lines and pull off air lines
  9. Remove compressor from the holder.

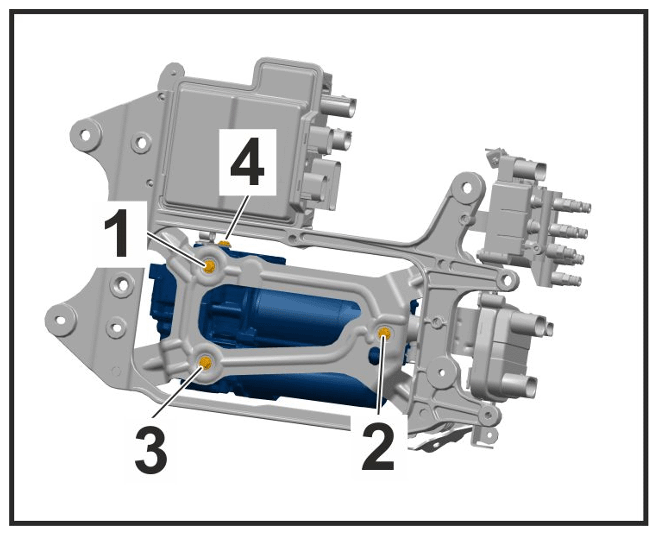

    Fig 3: Compressor Mounting Screws Loosening Sequence
    G15862131Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Compressor mounting

    1. 9.1 Unscrew fastening screws -1 to 4-  using > 9890 - socket wrench E12  .
