Preliminary Work

  1. Only for vehicles with Business package (I-no. 3Z7):

    Remove rear display and operator control unit.

    > 913119 REMOVING AND INSTALLING REAR DISPLAY AND OPERATOR CONTROL UNIT

  2. Remove rear climate control panel.

    > WM, 881119 REMOVING AND INSTALLING REAR AIR-CONDITIONING SYSTEM REGULATOR

  3. Remove rear oddments tray.

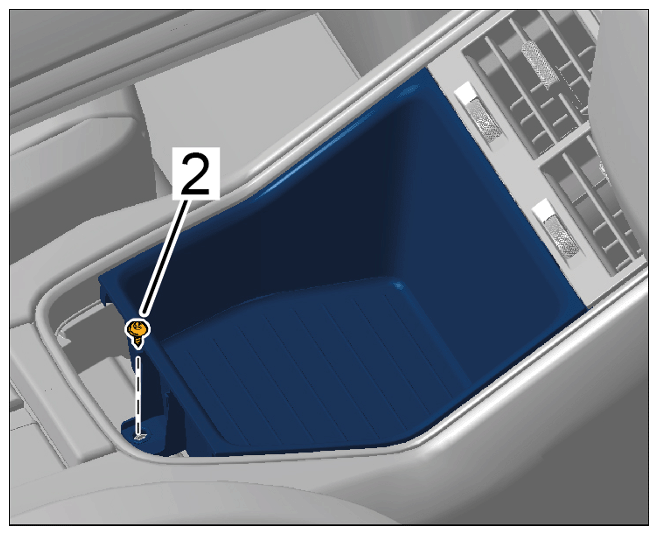

    1. 3.1 Unscrew and remove screw -2-  .
      G15874915Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Unscrewing screw

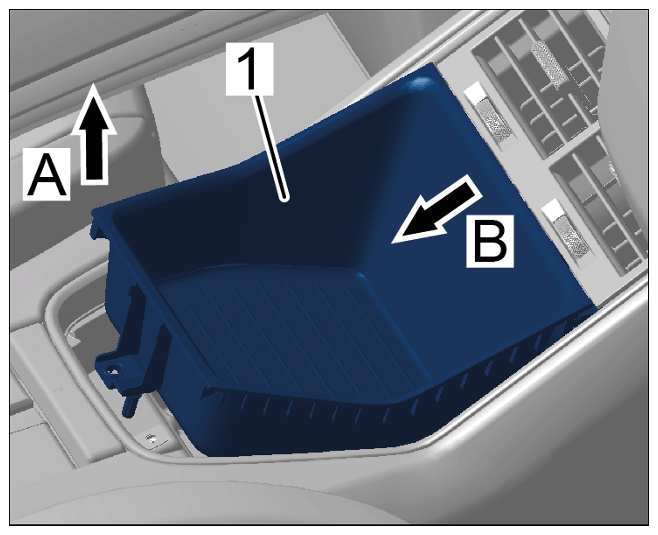

    2. 3.2 Carefully lift up rear oddments tray -1-  (-arrow A-  ) and unclip it at the front -arrow B-  .
      G15874916Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Removing storage compartment
