Installing Rear Centre Air Jet

  1. Installation is performed in reverse order. Pay particular attention to the following:

    Tighten screw -2-  securing rear centre air vent to centre console to the prescribed tightening torque > Tightening torque 1.5 Nm (1.1 ftlb.)

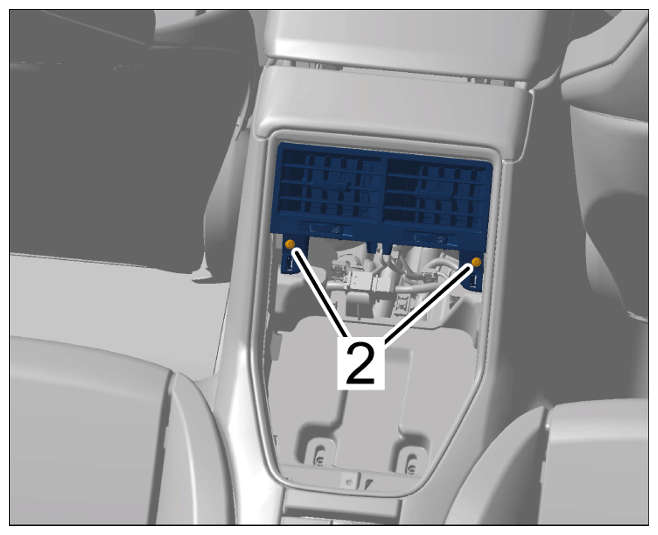

    G15874922Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws for rear centre air vent
