Removing Centre Air Vent

  1. Unscrew screws -2-  and unclip centre air vent -1-  .

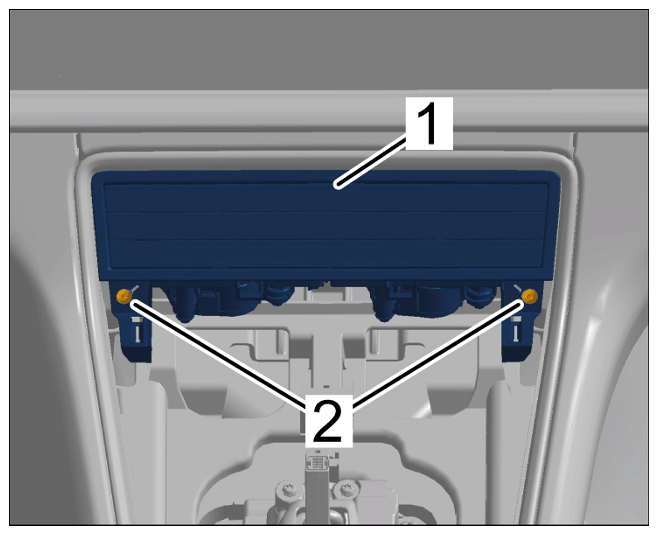

    G15874909Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing centre air vent

    Information

    • Observe colour coding and mark electric plug connections if necessary. Electric plug connections are not coded by shape.
  2. Release and disconnect electric plug connections -3-  .
    G15874910Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Releasing and pulling off electric plug connections

  3. Unclip line bracket -4-  and remove centre air vent -1-  .

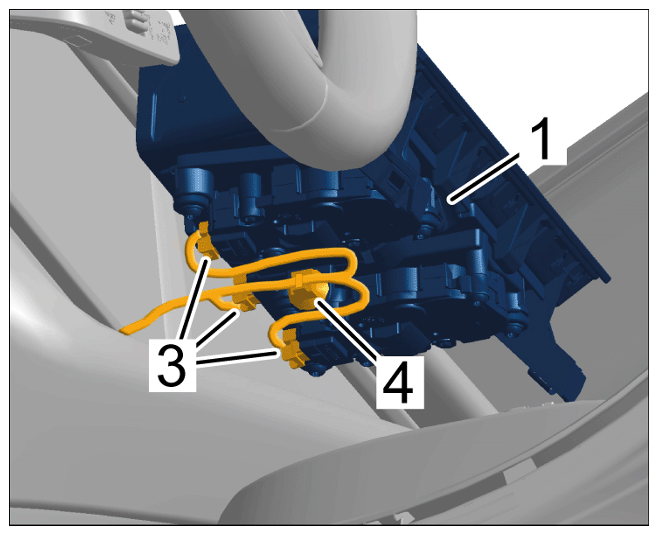

    G15874911Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing centre air vent
