Upper Trailing Arm: Notes

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Upper trailing arm to body	Item 1: Hexagon-head bolt, M10 x 75 and hexagon nut/always replace bolts and nuts following removal!	Initial tightening	50 Nm (37 ftlb.)

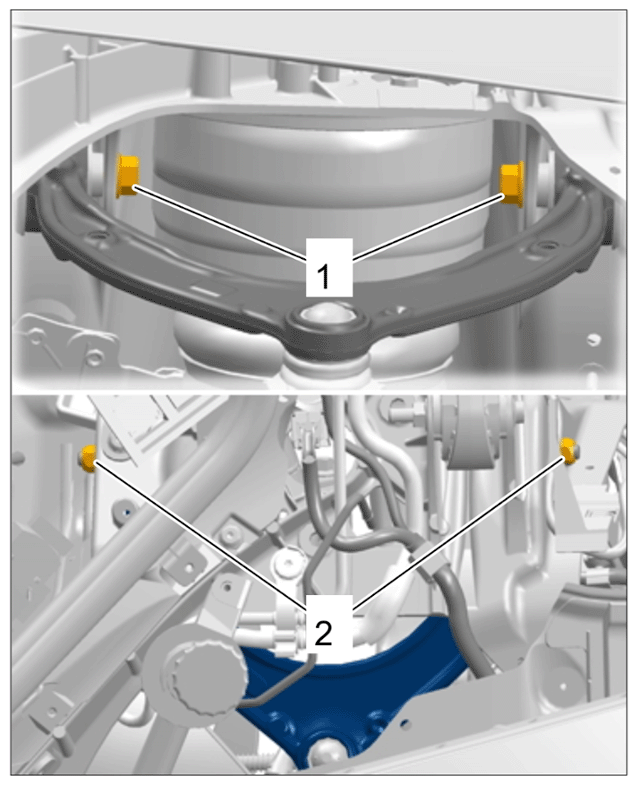

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for upper trailing arm
Upper trailing arm to body	Item 2: Hexagon-head bolt, M10 x 75 and hexagon nut/always replace bolts and nuts following removal!	Final tightening	+ 120°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for upper trailing arm
Upper trailing arm to wheel bearing housing	Item 2: Hexagon nut, M12 x 1.5	Tightening torque	85 Nm (63 ftlb.)

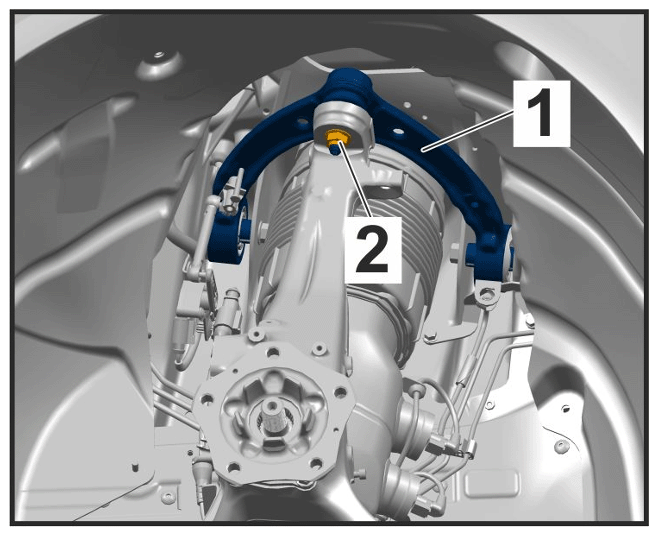

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for upper trailing arm on wheel bearing housing
