Vacuum System (V6 Mono-Turbo)
WARNING: This page is about a different variant/trim than selected.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

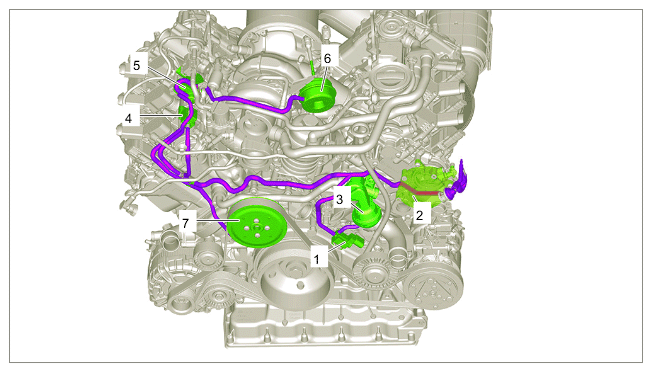

Vacuum system (V6 mono-turbo)
| 1 |
Control valve |
| 2 |
Vacuum pump |
| 3 |
|
| 4 |
Control valve |
| 5 |
Wastegate control valve |
| 6 |
Turbocharger vacuum unit |
| 7 |
Coolant pump |
