Technical Values: Overview

WARNING: This page is about a different variant/trim than selected.
Location Des... Type Basic val... Toleranc... Toleranc...
Screw, M4 8.8   Tightening torque 3 Nm (2 ftlb.)
Screw, M4 10.9   Tightening torque 4 Nm (3 ftlb.)
Screw, M4 12.9   Tightening torque 5 Nm (3.5 ftlb.)
Screw, M5 8.8   Tightening torque 6 Nm (4.5 ftlb.)
Screw, M5 10.9   Tightening torque 8 Nm (6 ftlb.)
Screw, M5 12.9   Tightening torque 10 Nm (7.5 ftlb.)
Screw, M6 8.8   Tightening torque 10 Nm (7.5 ftlb.)
Screw, M6 10.9   Tightening torque 13 Nm (9.5 ftlb.)
Screw, M6 12.9   Tightening torque 16 Nm (12 ftlb.)
Screw, M8 8.8   Tightening torque 23 Nm (17 ftlb.)
Screw, M8 10.9   Tightening torque 33 Nm (24 ftlb.)
Screw, M8 12.9   Tightening torque 39 Nm (29 ftlb.)
Screw, M10 8.8   Tightening torque 45 Nm (33 ftlb.)
Screw, M10 10.9   Tightening torque 65 Nm (48 ftlb.)
Screw, M10 12.9   Tightening torque 80 Nm (59 ftlb.)
Screw, M10 x 1.25 8.8   Tightening torque 50 Nm (37 ftlb.)
Screw, M10 x 1.25 10.9   Tightening torque 70 Nm (52 ftlb.)
Screw, M10 x 1.25 12.9   Tightening torque 85 Nm (63 ftlb.)
Screw, M12 8.8   Tightening torque 80 Nm (59 ftlb.)
Screw, M12 10.9   Tightening torque 115 Nm (85 ftlb.)
Screw, M12 12.9   Tightening torque 135 Nm (100 ftlb.)
Screw, M12 x 1.25 8.8   Tightening torque 90 Nm (67 ftlb.)
Screw, M12 x 1.25 10.9   Tightening torque 125 Nm (93 ftlb.)
Screw, M12 x 1.25 12.9   Tightening torque 150 Nm (111 ftlb.)
Screw, M12 x 1.5 8.8   Tightening torque 85 Nm (63 ftlb.)
Screw, M12 x 1.5 10.9   Tightening torque 120 Nm (89 ftlb.)
Screw, M12 x 1.5 12.9   Tightening torque 145 Nm (107 ftlb.)
Screw, M14 8.8   Tightening torque 130 Nm (96 ftlb.)
Screw, M14 10.9   Tightening torque 180 Nm (133 ftlb.)
Screw, M14 12.9   Tightening torque 220 Nm (163 ftlb.)
Screw, M16 8.8   Tightening torque 200 Nm (148 ftlb.)
Screw, M16 10.9   Tightening torque 280 Nm (207 ftlb.)
Screw, M16 12.9   Tightening torque 335 Nm (248 ftlb.)
Aluminum screw, M6 AL9 Initial tightening 4 Nm (3 ftlb.)
Aluminum screw, M6 AL9 Final tightening 90°
Aluminum screw, M8 AL9 Initial tightening 10 Nm (7.5 ftlb.)
Aluminum screw, M8 AL9 Final tightening 90°
Aluminum screw, M10 AL9 Initial tightening 20 Nm (15 ftlb.)
Aluminum screw, M10 AL9 Final tightening 90°
Screw for fuel tank M8 x 30 (3 ea.) Tightening torque 20 Nm (15 ftlb.)
Screw for fuel tank restraining strap M8 x 30 (4 ea.) Tightening torque 20 Nm (15 ftlb.)
Screws for filler neck holder M6 x 20 (3 ea.), observe specified tightening sequence Tightening torque 8 Nm (6 ftlb.)
Screw for filler neck M6 x 20 (1 ea.) Tightening torque 8 Nm (6 ftlb.)
Screw for filler neck protector M6 x 20 (3 ea.), observe specified tightening sequence Tightening torque 8 Nm (6 ftlb.)
Fuel line protector to body Screw, M6 x 20 (3 ea.) Tightening torque 8 Nm (6 ftlb.)
Filler neck holder to body Screw, M6 x 20 (2 ea.) Tightening torque 8 Nm (6 ftlb.)
Tank ventilation sensor M6 screw Tightening torque 9 Nm (6.5 ftlb.)
Locking ring on fuel tank flange   Tightening torque 110 Nm (81.5 ftlb.) +/- 5 Nm (3.5 ftlb.)
Carbon canister to battery tray (top) Hexagon nut, M6 (2 ea.) Tightening torque 6 Nm (4.5 ftlb.)
Carbon canister to battery tray (bottom) Hexagon nut, M6 (1 ea.) Tightening torque 6 Nm (4.5 ftlb.)
Leakage diagnosis unit to carbon canister Tapping screw, M5 x 12 Tightening torque 2 Nm (1.5 ftlb.)
Pressure sensor holder Screw, M6 x 20 Tightening torque 9 Nm (6.5 ftlb.)
Holder for tank ventilation control valve Screw, M6 x 20 Tightening torque 9 Nm (6.5 ftlb.)
Damping element holder Screw, M6 x 12 Tightening torque 9 Nm (6.5 ftlb.)
Fastening screw for turbocharger shut-off valve M6 x 18 Tightening torque 9 Nm (6.6 ftlb.)
Securing nut turbocharger stud M8 Tightening torque 25 Nm (18.4 ftlb.)
Stud for turbocharger M8 Tightening torque 15 Nm (11.1 ftlb.)
Fastening nut for turbocharger dowel stud M8 Tightening torque 30 Nm (22.1 ftlb.)
Dowel studs for turbocharger M8 Tightening torque 15 Nm (11.1 ftlb.)
V-band clip on turbocharger replace Tightening torque 20 Nm (14.8 ftlb.)
Screw on turbocharger speed sensor M4 x 14 Tightening torque 5 Nm (3.7 ftlb.)
Screw plug on turbocharger nozzle M16 x 1 x 7, 5 Tightening torque 25 Nm (18.4 ftlb.)
Adjustment travel for control rod Vacuum at 165 - 175 mbar Setpoint value 8 mm +/- 1 mm
Adjustment travel for control rod at a vacuum of 95 - 105 mbar Setpoint value 3 mm +/- 1 mm
Nut vacuum modulator M6 Tightening torque 8 Nm (5.9 ftlb.)
Fastening screw for turbocharger shut-off valve M6 x 18 Tightening torque 9 Nm (6.6 ftlb.)
Screw for activated carbon filter lines   Tightening torque 9 Nm (6.6 ftlb.)
Lock nuts on control rod   Tightening torque 8 Nm (5.9 ftlb.)
Fastening screws on turbocharger lines M6 Tightening torque 9 Nm (6.6 ftlb.)
Fastening screws on turbocharger lines M6 Tightening torque 9 Nm (6.6 ftlb.)
Coolant return line screw for turbocharger on left cylinder head M6X16 Tightening torque 9 Nm (6.6 ftlb.)
Fastening screw securing intake/pressure pipe to turbocharger M6 x 32 Tightening torque 9 Nm (6.5 ftlb.)
Screw-type clamp for pressure hose   Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.4 ftlb.)
Fastening screw for pressure sensor on charge-air cooler   Tightening torque 5 Nm (3.5 ftlb.)
Air cleaner housing cover Tapping screw Tightening torque 2 Nm (1.5 ftlb.)
Air-cleaner cowl to air cleaner Screw-type clamp Tightening torque 5 Nm (3.5 ftlb.)
Rear part of air cleaner housing Tapping screw Tightening torque 2 Nm (1.5 ftlb.)
Intake scoop to air-cleaner cowl Screw-type clamp Tightening torque 3.5 Nm (2.5 ftlb.)
Intake pipe to intake scoop Screw-type clamp Tightening torque 3.5 Nm (2.5 ftlb.)
Air cleaner housing to lock carrier Screw, M6 x 14 Tightening torque 4.5 Nm (3.25 ftlb.)
Fastening screw securing throttle valve to intake-air distributor TP6 x 45 Tightening torque 7 Nm (5 ftlb.)
Fastening screws for intake-air distributor M6 x 45/Observe tightening sequence Tightening torque 9 Nm (6.5 ftlb.)
Fastening screw for pressure sensor on intake-air distributor   Tightening torque 9 Nm (6.5 ftlb.)
Fastening screw securing throttle valve to intake-air distributor   Tightening torque 7 Nm (5 ftlb.)
Fastening screw for pressure sensor on intake-air distributor   Tightening torque 5 Nm (3.5 ftlb.)
Fastening screw for centre intake-air distributor holder   Tightening torque 9 Nm (6.5 ftlb.)
Fastening screws securing centre intake-air distributor to intake-air distributor   Tightening torque 7 Nm (5 ftlb.)
Fastening screws for intake-air distributor M6 x 25/observe tightening sequence Initial tightening 8 Nm (6 ftlb.)
Fastening screws for intake-air distributor M6 x 25/observe tightening sequence Final tightening + 45°
Fastening screw for intake-air distributor temperature sensor   Tightening torque 9 Nm (6.5 ftlb.)
Screw   Tightening torque 9 Nm (6.5 ftlb.)
Vacuum line holder M6 screw Tightening torque 9 Nm (6.5 ftlb.)
Screws for control valve holder   Tightening torque 9 Nm (6.5 ftlb.)
Oxygen sensors upstream of catalytic converter Coat thread with hot screw paste Tightening torque 52 Nm (38 ftlb.)
Oxygen sensors downstream of catalytic converter Coat thread with hot screw paste Tightening torque 52 Nm (38 ftlb.)
Fastening screws on high-pressure pump M8 x 25 Initial tightening 20 Nm (14.8 ftlb.)
Fastening screws on high-pressure pump   Final tightening + 45°
Fastening screw for fuel collection pipe M6 x 16 Tightening torque 9 Nm (6.6 ftlb.)
Adapter for high-pressure fuel line   Tightening torque 40 Nm (29.5 ftlb.)
Fuel pressure sensor for high pressure   Tightening torque 25 Nm (18.4 ftlb.)
Nut for fuel line M6 Tightening torque 9 Nm (6.6 ftlb.)
Fuel pressure sensor for low pressure   Tightening torque 15 Nm (11.1 ftlb.)
Low-pressure fuel line on distributor Coat thread on union nuts with Microgleit DF 977S. Observe drying time of at least 5 minutes before fitting. Coat Tightening torque 8 Nm (5.9 ftlb.)
Fuel line low-pressure distributor Coat thread on union nuts with Microgleit DF 977S. Observe drying time of at least 5 minutes before fitting. Tightening torque 60°
Fastening screw for low-pressure line holder M6 x 12 Tightening torque 9 Nm (6.6 ftlb.)
Shield on crash support for high-pressure pump PT 7 x 22 Tightening torque 14 Nm (10.3 ftlb.)
Fastening screw securing heat shield to high-pressure pump M6 x 12 Tightening torque 8 Nm (5.9 ftlb.)
Fastening screw securing heat shield to high-pressure pump M6 x 25 Tightening torque 8 Nm (5.9 ftlb.)
Fastening screws for ground lines for left cylinder head Item 1 Tightening torque 9 Nm (6.6 ftlb.)

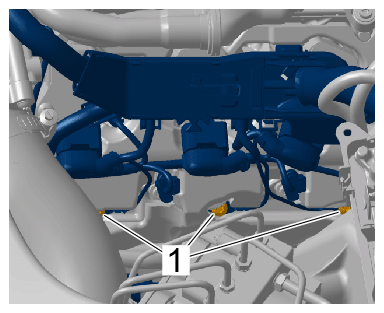

G15877143Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for ground lines for left cylinder head
Ground line for right cylinder head Item 1 Tightening torque 9 Nm (6.6 ftlb.)

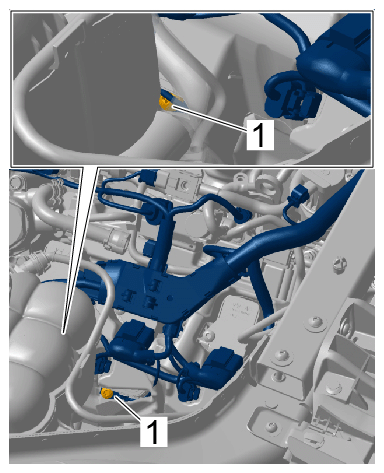

G15877144Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ground line for right cylinder head

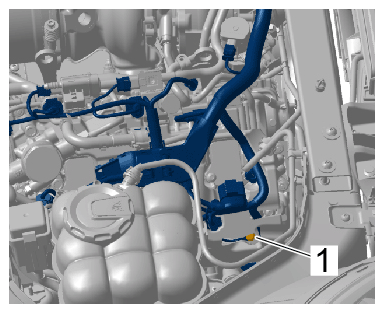

G15877145Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ground line for right cylinder head, bottom
Fastening screw for high-pressure fuel line Replace tightening torque 8 Nm (5.9 ftlb.)
Fastening screw for high-pressure fuel line   final tightening torque 45°
Fastening screw for fuel line support M6 x 12 Tightening torque 9 Nm (6.6 ftlb.)
Union nut for fuel line Coat thread on union nuts with Microgleit DF 977S. Observe drying time of at least 5 minutes before fitting. tightening torque of 10 Nm (7.4 ftlb.)
Union nut for fuel line Coat thread on union nut with Microgleit DF 977S. Observe drying time of at least 5 minutes before fitting. Torque angle 60°
Fastening screws for exhaust flap actuator M5 Tightening torque 5 Nm (3.5 ftlb.)
Ball clamp securing exhaust system to exhaust pipe   Tightening torque 35 Nm (26 ftlb.)
Fastening screws securing exhaust system to body M8 Tightening torque 23 Nm (17 ftlb.)
Fastening screws for rear silencer strut M8 x 25 Tightening torque 23 Nm (17 ftlb.)
Fastening screws securing rear silencer to body M8 x 22 Tightening torque 23 Nm (17 ftlb.)
Fastening screw for tailpipe cover M6 x 12 Tightening torque 8 Nm (6 ftlb.) +/- 1 Nm (0.5 ftlb.)
Exhaust clamp Replace rear silencer Tightening torque 33 Nm (24 ftlb.)
V-band clamp securing primary catalytic converter to turbocharger   Tightening torque 7 Nm (5 ftlb.) +/- 1 Nm (0.5 ftlb.)
Fastening screw securing support to catalytic converter M8 x 20 Tightening torque 23 Nm (17 ftlb.)
Fastening screw securing holder to transmission   Tightening torque 23 Nm (17 ftlb.)
Fastening screw securing holder to catalytic converter M8 x 20 Tightening torque 23 Nm (17 ftlb.)
Fastening nuts securing primary catalytic converter to catalytic converter M8/replace Tightening torque 23 Nm (17 ftlb.)
Ball clamp securing exhaust system to catalytic converter   Tightening torque 35 Nm (26 ftlb.)
Fastening screw securing heat shield to turbocharger M6 x 12 Tightening torque 9 Nm (6.5 ftlb.)
Ball pin for heat shield on turbocharger   Tightening torque 4.8 Nm (3.5 ftlb.)
Fastening screws for ball pin holder M6 x 12 Tightening torque 9 Nm (6.5 ftlb.)
Fastening screw for generator Screw, M8 x 90 Tightening torque 22 Nm (16 ftlb.)
Fastening nut securing B+ line to generator M8 Tightening torque 20 Nm (15 ftlb.)
Fastening screw securing generator bracket to engine Aluminum screw, M8 x 40 - replace screws Initial tightening 8 Nm (6 ftlb.)
Fastening screw securing generator bracket to engine Aluminum screw, M8 x 40 - replace screws Final tightening torque angle 90 Grad
Fastening screw for starter M10 x 40 Tightening torque 45 Nm (33 ftlb.) + 10 % - 15 %
Fastening nut securing B+ line to starter M8 Tightening torque 23 Nm (17 ftlb.) +/- 10 %
Fastening nut securing control line to starter M6 Tightening torque 9 Nm (6.5 ftlb.)
Double screw for ignition coil M6 x 45 - M6 x 12 Tightening torque 9 Nm (6.6 ftlb.)
Fastening screw for camshaft hall sender M6 x 16 Tightening torque 9 Nm (6.6 ftlb.)
Fastening screw for pulse sender crankshaft Steel screw M6 x 18 Tightening torque 8 Nm (5.9 ftlb.)
Fastening screw for pulse sender crankshaft Aluminum screw M6 x 18 Initial tightening torque 3 Nm (2.2 ftlb.)
Fastening screw for pulse sender for crankshaft Aluminum screw M6 x 18 Final tightening torque + 90°
Fastening screw for knock sensor M8 x 30 Tightening torque 30 Nm (22.1 ftlb.)
Spark plug   Tightening torque 23 Nm (17 ftlb.)
Fastening nut securing earth line to ignition coil M6 Tightening torque 9 Nm (6.6 ftlb.)


Information

Information

The following screws must be replaced after disassembly and/or after loosening:

The torques specified in the table below generally apply to screws that are not specifically listed =>

The bolt quality is indicated on the screw head at the top as a decimal number, e.g. "8.8" or "12.9".

Bolt quality 8.8 Bolt quality 10.9 Bolt quality 12.9
Thread [Nm (ftlb.)] Thread [Nm (ftlb.)] Thread [Nm (ftlb.)]
M4 > Tightening torque 3 Nm (2 ftlb.)  M4 > Tightening torque 4 Nm (3 ftlb.)  M4 > Tightening torque 5 Nm (3.5 ftlb.)
M5 > Tightening torque 6 Nm (4.5 ftlb.)  M5 > Tightening torque 8 Nm (6 ftlb.)  M5 > Tightening torque 10 Nm (7.5 ftlb.)
M6 > Tightening torque 10 Nm (7.5 ftlb.)  M6 > Tightening torque 13 Nm (9.5 ftlb.)  M6 > Tightening torque 16 Nm (12 ftlb.)
M8 > Tightening torque 23 Nm (17 ftlb.)  M8 > Tightening torque 33 Nm (24 ftlb.)  M8 > Tightening torque 39 Nm (29 ftlb.)
M10 > Tightening torque 45 Nm (33 ftlb.)  M10 > Tightening torque 65 Nm (48 ftlb.)  M10 > Tightening torque 80 Nm (59 ftlb.)
M10 x 1.25 > Tightening torque 50 Nm (37 ftlb.)  M10 x 1.25 > Tightening torque 70 Nm (52 ftlb.)  M10 x 1.25 > Tightening torque 85 Nm (63 ftlb.)
M12 > Tightening torque 80 Nm (59 ftlb.)  M12 > Tightening torque 115 Nm (85 ftlb.)  M12 > Tightening torque 135 Nm (100 ftlb.)
M12 x 1.25 > Tightening torque 90 Nm (67 ftlb.)  M12 x 1.25 > Tightening torque 125 Nm (93 ftlb.)  M12 x 1.25 > Tightening torque 150 Nm (111 ftlb.)
M12 x 1.5 > Tightening torque 85 Nm (63 ftlb.)  M12 x 1.5 > Tightening torque 120 Nm (89 ftlb.)  M12 x 1.5 > Tightening torque 145 Nm (107 ftlb.)
M14 > Tightening torque 130 Nm (96 ftlb.)  M14 > Tightening torque 180 Nm (133 ftlb.)  M14 > Tightening torque 220 Nm (163 ftlb.)
M16 > Tightening torque 200 Nm (148 ftlb.)  M16 > Tightening torque 280 Nm (207 ftlb.)  M16 > Tightening torque 335 Nm (248 ftlb.)
