Group 26 - Exhaust System: Starter
WARNING: This page is about a different variant/trim than selected.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

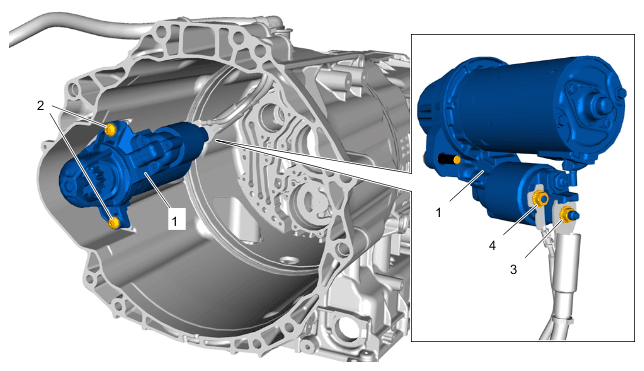

Starter
| 1 |
Starter |
| 2 |
Screw, M10 x 40 > Tightening torque 45 Nm (33 ftlb.) + 10 % - 15 % |
| 3 |
M8 nut > Tightening torque 23 Nm (17 ftlb.) +/- 10 % |
| 4 |
M6 nut > Tightening torque 9 Nm (6.5 ftlb.) |
