Catalytic Converter (Monoturbo)

WARNING: This page is about a different variant/trim than selected.

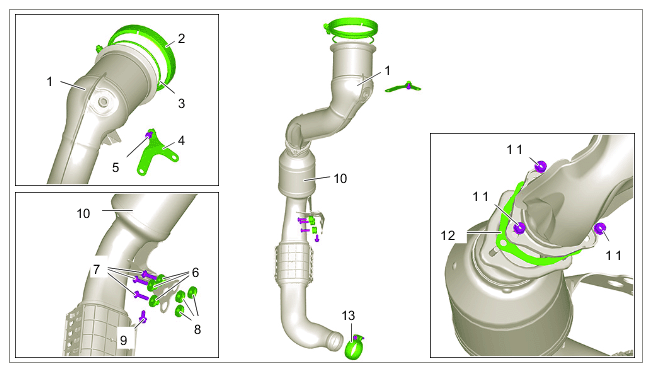

Fig 1: Catalytic Converter Components Location With Torque Specification (Monoturbo)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Catalytic converter (monoturbo)

1	Primary catalytic converter
2	V-band clamp/replace > Tightening torque 7 Nm (5 ftlb.) +/- 1 Nm (0.5 ftlb.)
3	Seal/replace
4	Support
5	Screw, M8 x 20 > Tightening torque 23 Nm (17 ftlb.)
6	Holder
7	Screws, M8 x 30 > Tightening torque 23 Nm (17 ftlb.)
8	Insulation
9	Screws, M8 x 20 > Tightening torque 23 Nm (17 ftlb.)
10	Catalytic converter
11	Nuts/replace > Tightening torque 23 Nm (17 ftlb.)
12	Seal/replace
13	Ball clamp > Tightening torque 35 Nm (26 ftlb.)
