Intake-Air Distributor (V6 Monoturbo)

WARNING: This page is about a different variant/trim than selected.

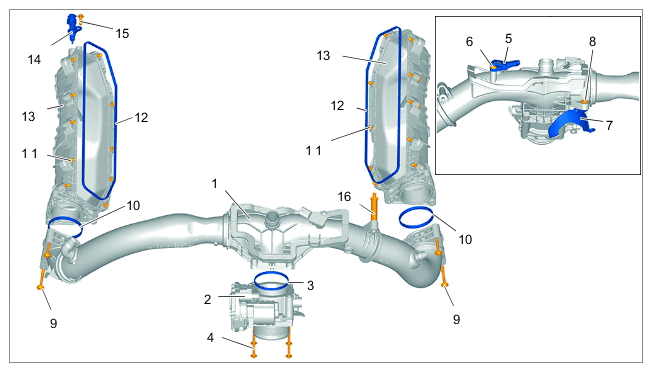

Fig 1: Intake-Air Distributor Components Location With Torque Specification - V6 Monoturbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Intake-air distributor - V6 monoturbo

1	Centre intake-air distributor
2	Throttle valve
3	Seal/replace if damaged
4	Screws > Tightening torque 7 Nm (5 ftlb.)
5	Pressure sensor
6	Screw > Tightening torque 5 Nm (3.5 ftlb.)
7	Holder
8	Screw > Tightening torque 9 Nm (6.5 ftlb.)
9	Screws > Tightening torque 7 Nm (5 ftlb.)
10	Seal/replace if damaged
11	Screws, M6 x 25/observe tightening sequence > Initial tightening 8 Nm (6 ftlb.) > Final tightening + 45°
12	Seal/replace if damaged
13	Intake-air distributor, left and right
14	Temperature sensor
15	Screw > Tightening torque 9 Nm (6.5 ftlb.)
16	Screw > Tightening torque 9 Nm (6.5 ftlb.)

Tightening sequence for intake-air distributor

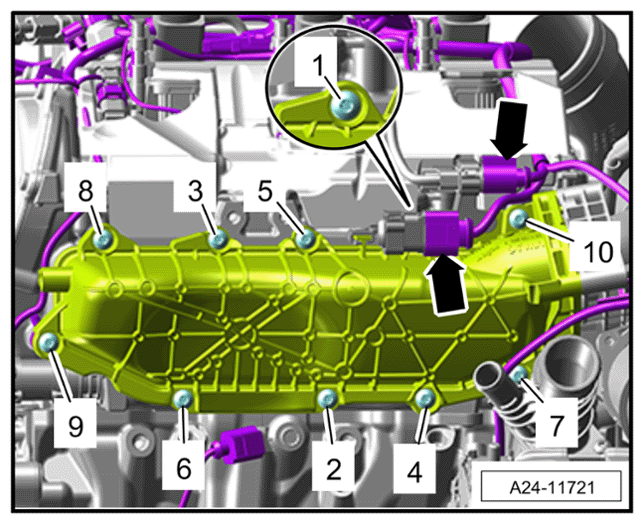

Fig 2: Intake-Air Distributor Screws Tightening Sequence - V6 Biturbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for intake-air distributor - V6 biturbo

1-10	Tightening sequence for intake-air distributor screws - V6 Turbo
