Pressure Pipe And Intake Pipe (V6 Monoturbo)

WARNING: This page is about a different variant/trim than selected.

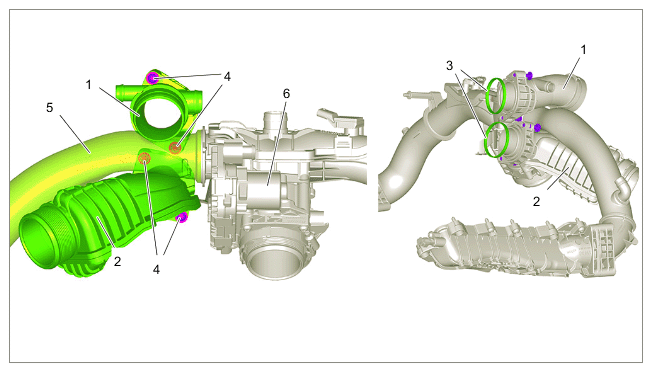

Fig 1: Pressure Pipe And Intake Pipe Components Location With Torque Specification (Monoturbo)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure pipe and intake pipe (monoturbo)

1	Intake pipe
2	Pressure pipe
3	Seal/replace if damaged
4	Screws, M6 x 32 > Tightening torque 9 Nm (6.5 ftlb.)
5	Centre intake-air distributor

Charge air cooler

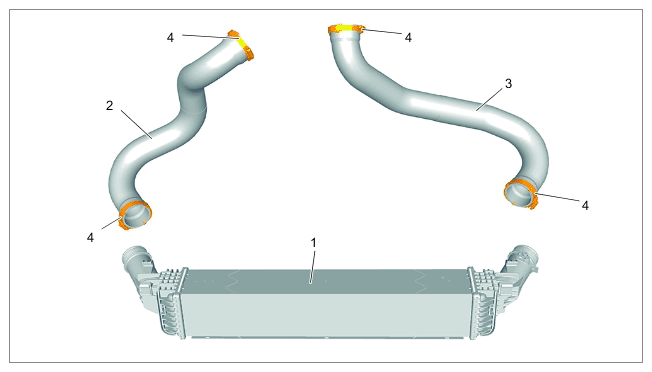

Fig 2: Charge-Air Cooler Components Location With Torque Specification - V6 Monoturbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Charge-air cooler - V6 monoturbo

1	Charge-air cooler
2	Pressure hose, left
3	Pressure hose, right
4	Screw-type clamp > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.4 ftlb.)
not pictured	Screw > Tightening torque 5 Nm (3.5 ftlb.)
