Removing Generator

WARNING: This page is about a different variant/trim than selected.

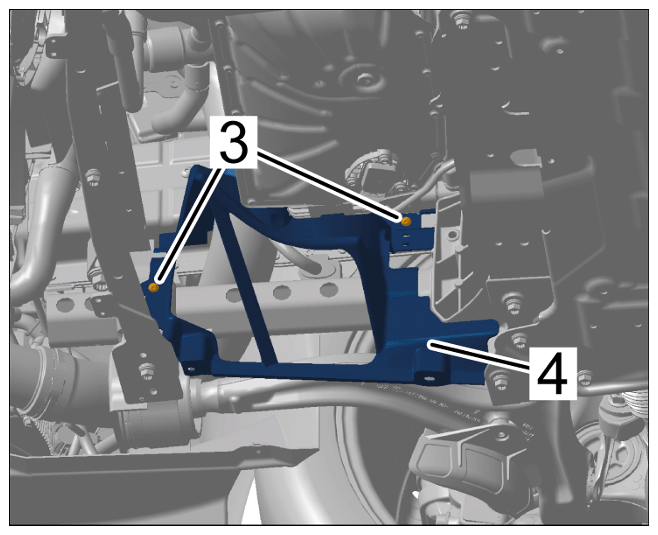

  1. Remove cover on generator -4-  .
    G15877081Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Generator c

    1. 1.1 Undo clips -3-  .
    2. 1.2 Remove cover on generator -4-  .

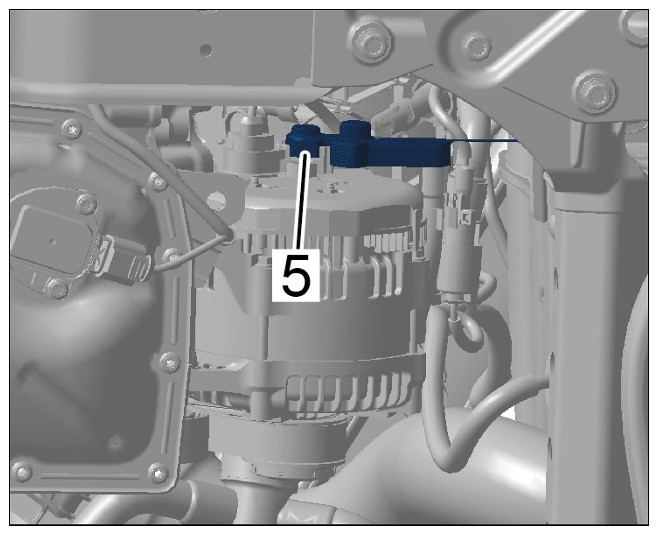

  2. Pull off protection cap -5-  .
    G15877082Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Protection cap

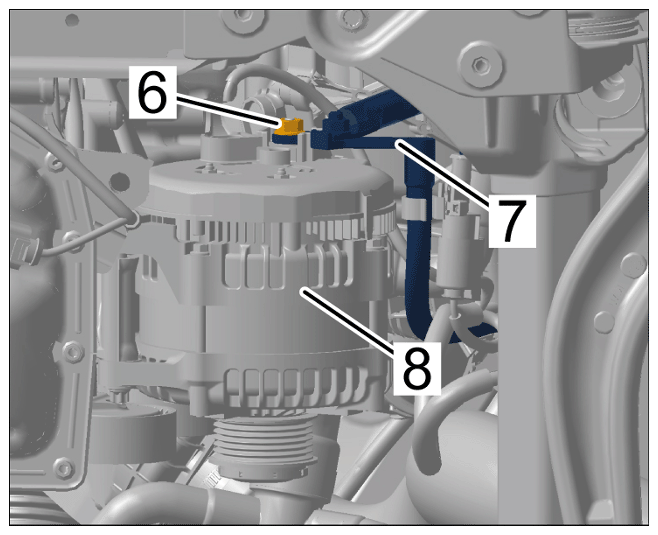

  3. Screw off nut -6-  for B+ line -7-  on the generator -8-  .
    G15877083Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    B+ line

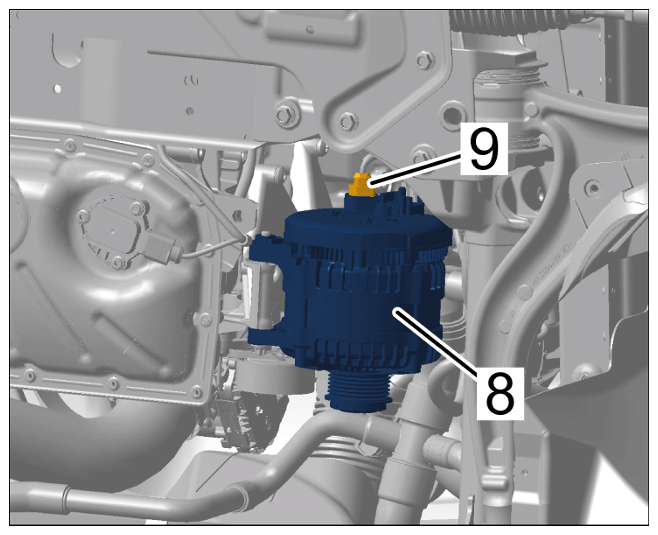

  4. Release and disconnect electric plug connection -9-  on the generator -8-  .
    G15877084Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  5. Remove the generator -8-  .
    G15877085Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Generator

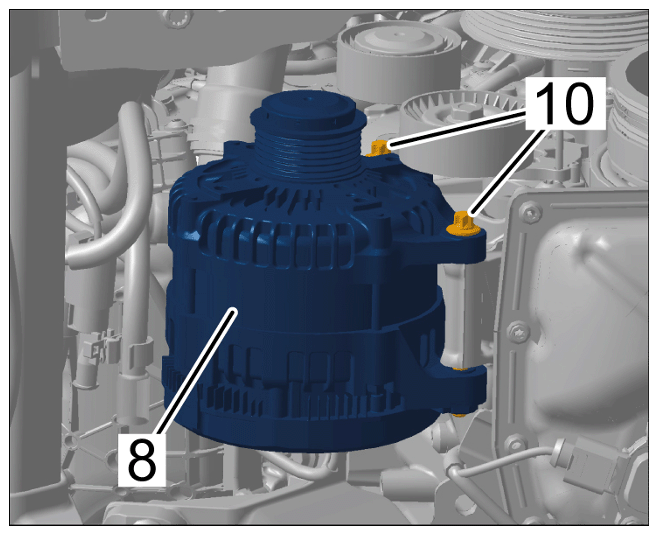

    1. 5.1 Unscrew screws -10-  .
    2. 5.2 Remove generator -8-  in a downward direction.
