Removing Pressure Sensor (Charge-Air Cooler)
WARNING: This page is about a different variant/trim than selected.
- Remove pressure sensor -2-
.
- 1.1 Release and disconnect electric plug connection -3-
on the pressure sensor -2-
.
- 1.2 Loosen and unscrew screw -1-
.
- 1.3 Lift pressure sensor -2-
up and off.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

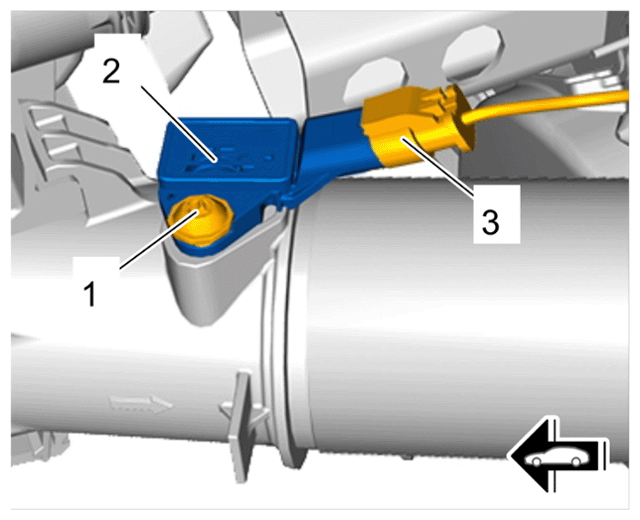

Pressure sensor on charge-air cooler
