Installing Pressure Pipe
WARNING: This page is about a different variant/trim than selected.
- Installation is performed in reverse order. Pay particular attention to the following:
- 1.1 Fit new seal on pressure pipe -1-
.
- 1.2 Screws -4-
> Tightening torque 9 Nm (6.5 ftlb.)
.
- 1.3 Screw-type clamp on pressure hose -2-
> Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.4 ftlb.)
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

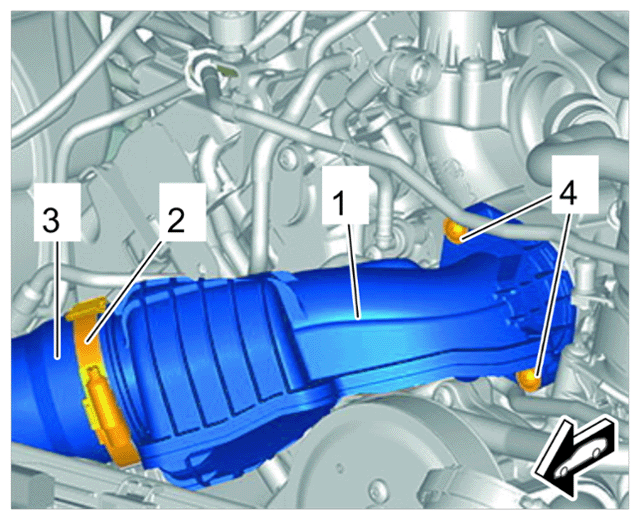

Pressure pipe
