Removing Recirculating Air Valve (V6 MONOTURBO)
WARNING: This page is about a different variant/trim than selected.
- Remove recirculating air valve -1-
.
- 1.1 Release and disconnect electric plug connection -2-
.
- 1.2 Unscrew screw -3-
. To do this, press hoses -4-
aside.
- 1.3 Remove recirculating air valve -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

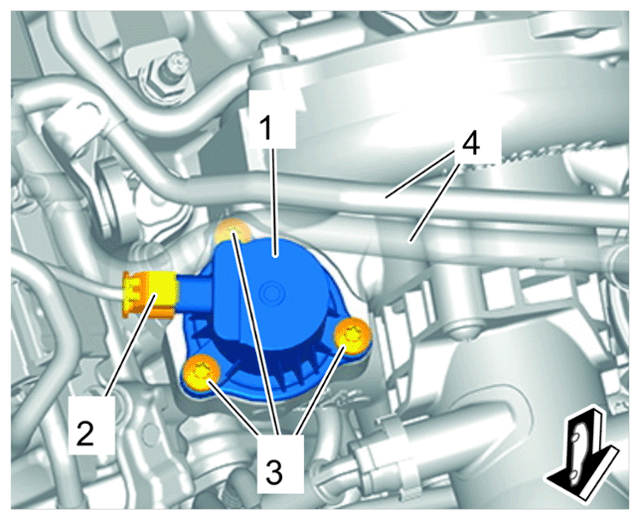

Recirculating air valve
