Technical Values - Control Units

WARNING: This page is about a different variant/trim than selected.

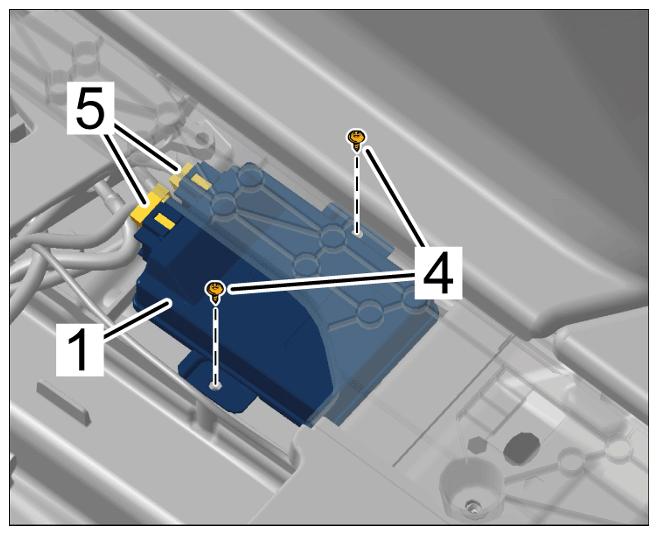

Fig 1: Rear-Differential Lock Control Unit Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for rear-differential lock control unit

4	Screws for rear-differential lock control unit > Tightening torque 3 Nm (2 ftlb.)

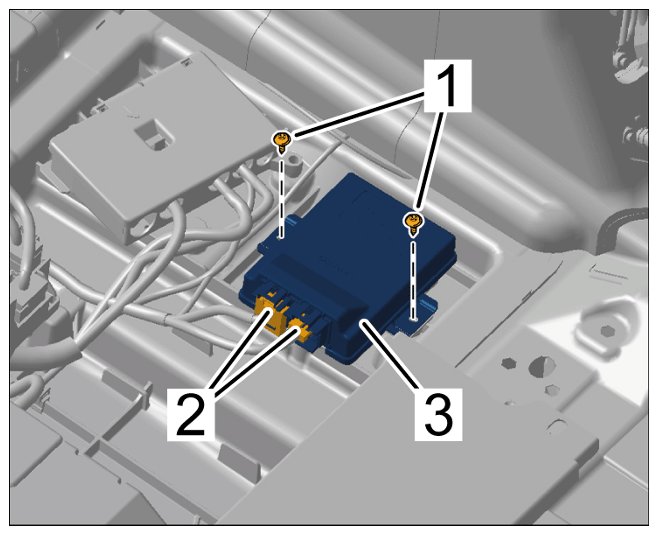

Fig 2: Transfer Gear Control Unit Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on transfer gear control unit

1	Screw on transfer gear control unit > Tightening torque 0 Nm (0 ftlb.)
