Transmission Mounts
WARNING: This page is about a different variant/trim than selected.

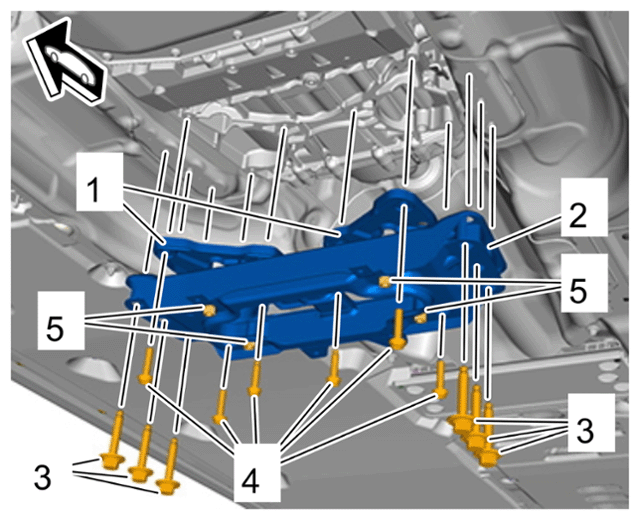

Transmission mounts
| 1 | Transmission mount |
| 2 | Transmission support |
| 3 | Screws for transmission support/body > Initial tightening 25 Nm (19 ftlb.) > Torque angle 90° |
| 4 | Screws for transmission mount/transmission > Tightening torque 20 Nm (15 ftlb.) |
| 5 | Nuts for transmission support/transmission mount > Tightening torque 20 Nm (15 ftlb.) |
