Transmission Add-On Parts

WARNING: This page is about a different variant/trim than selected.

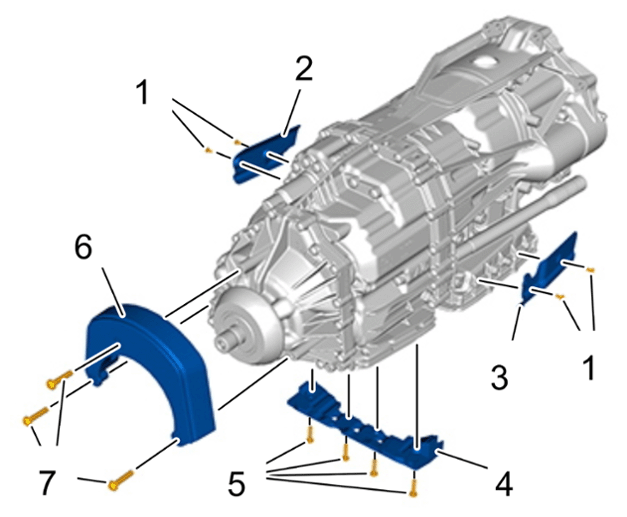

Fig 1: Heat Shield And Vibration Balancer Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield and vibration balancer

1	Screws for heat shield/transmission > Tightening torque 8 Nm (6 ftlb.)
2	Left heat shield (for allocation, see Parts Information)
3	Right heat shield (for allocation, see Parts Information)
4	Deflector
5	Screws for deflector/transmission > Initial tightening 4 Nm (3 ftlb.) > Torque angle 45°
6	Vibration balancer (only on diesel models)
7	Screws for vibration balancer/transmission > Tightening torque 20 Nm (15 ftlb.)

Fig 2: Cover On Starter Component Location With Torque Specification (V8 Diesel)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

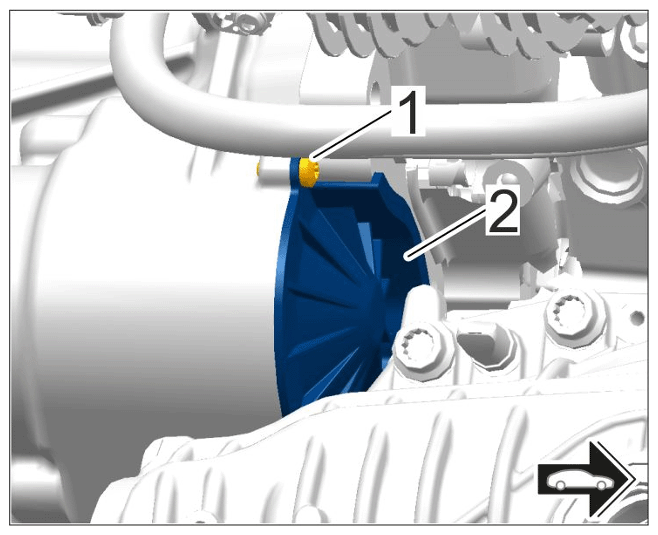

Cover on starter (V8 Diesel only)

1	Screw for cover on starter > Tightening torque 9 Nm (6.5 ftlb.)

Fig 3: Holder For Temperature Sensor On Transmission Component Location With Torque Specification (V8 Diesel)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

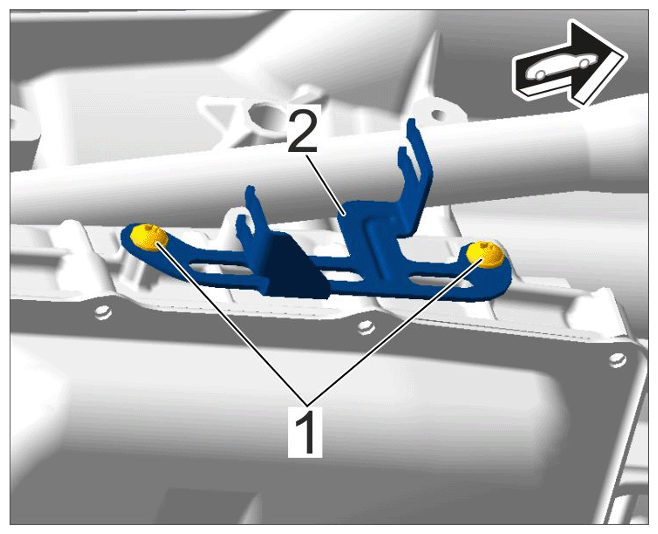

Holder for temperature sensor on transmission (V8 Diesel only)

1	Screw for temperature sensor holder > Tightening torque 8 Nm (6 ftlb.)

Fig 4: Wire Harness For B+ To Transmission Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

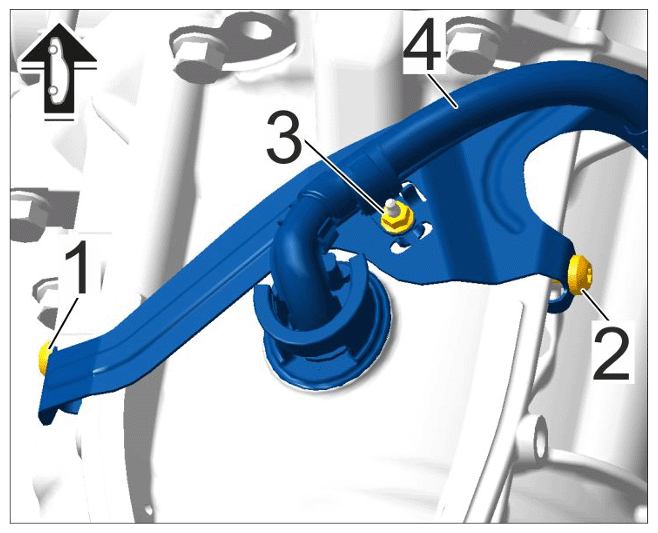

Wire harness for B+ to transmission

1	Screw on bracket for wire harness for B+/transmission, left > Tightening torque 20 Nm (15 ftlb.)
2	Screw on bracket for wire harness for B+/transmission, right > Tightening torque 8 Nm (6 ftlb.)
3	M6 nut on bracket for wire harness for B+ > Tightening torque 8 Nm (6 ftlb.)
	Particle filter holder to transmission > Tightening torque 23 Nm (17 ftlb.)
