Installing Brake Pedal
WARNING: This page is about a different variant/trim than selected.
Information

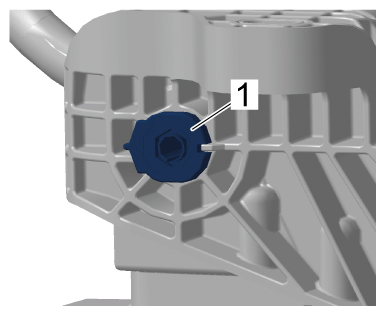

The cover on the pedal shaft -1- is coded and can only be fitted at the correct installation position.
Check that the lugs on the cover are engaged in the cut-outs in the base of the pedal.
This is the only way to ensure that the pedal shaft is installed at the correct position and will not turn.
Do not grease the pedal shaft -1- !
Pedal shaft
| 1 | Install brake pedal with pedal shaft. |
| 2 | Insert push rod into brake pedal. |
