Removing Coolant Temperature Sensor (Engine Outlet)

WARNING: This page is about a different variant/trim than selected.

Information

When the engine is cold, the cap on the coolant reservoir can be opened briefly in order to release residual pressure in the cooling system.

Information

If sealing rings remain stuck in the cylinder head, pull with a wire.

Information

Re-install coolant temperature sensor (engine outlet) as quickly as possible or close off the opening using a suitable stopper to prevent unnecessary coolant loss.

  1. Remove coolant temperature sensor (engine outlet) -1-  .
    1. 1.1 Release and unplug electric plug connection -3-  .
    2. 1.2 Place cloths underneath.
    3. 1.3 Unscrew and remove screw -2-  .
    4. 1.4 Remove coolant temperature sensor (engine outlet) -1-  .

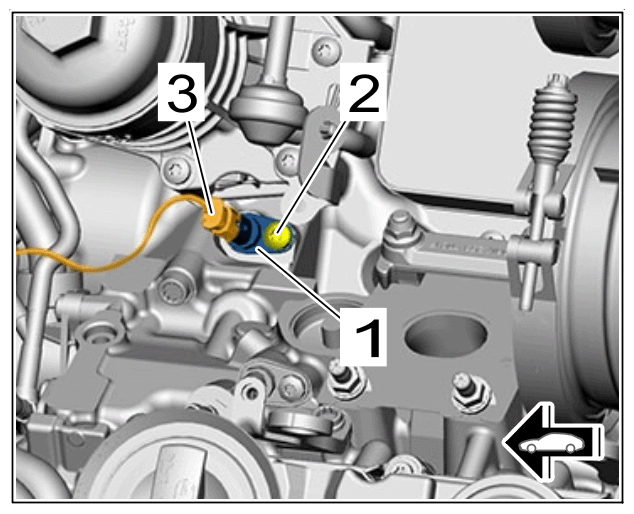

    G15822545Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Temperature sensor (engine outlet)
