Installing Balance Shaft Bearing

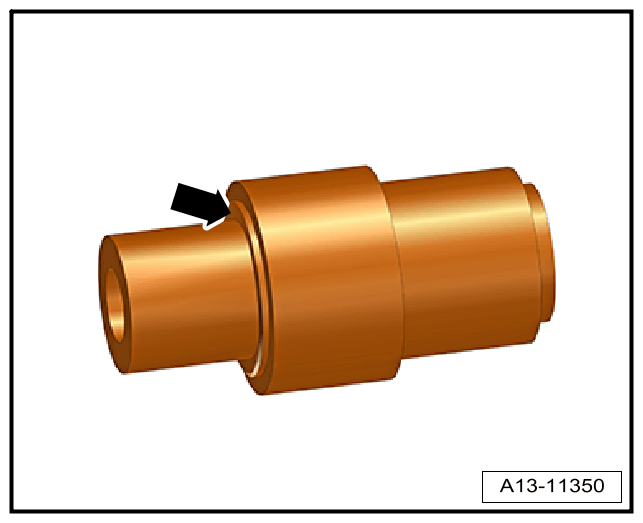

1. Fit adapter T40395/2  on the roller bearing at the correct side. The chamfer -Arrow-  must be facing the roller bearing and determines the installation depth.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Adapter T40395/2

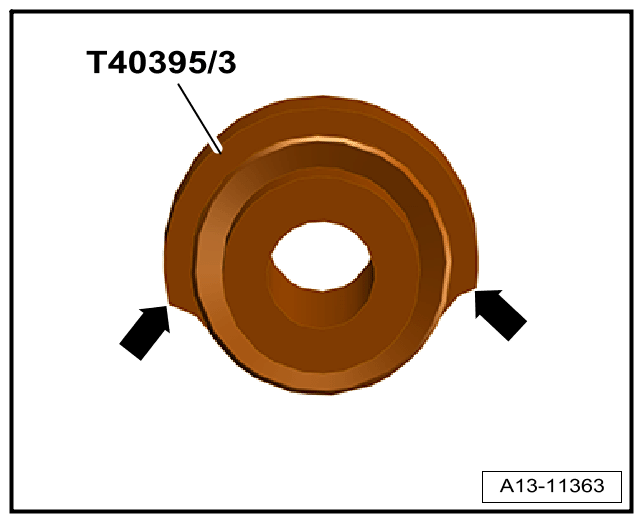

2. Align adapter -T40395/3-  . The side without the chamfer -Arrows-  points downwards

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Adapter T40395/3

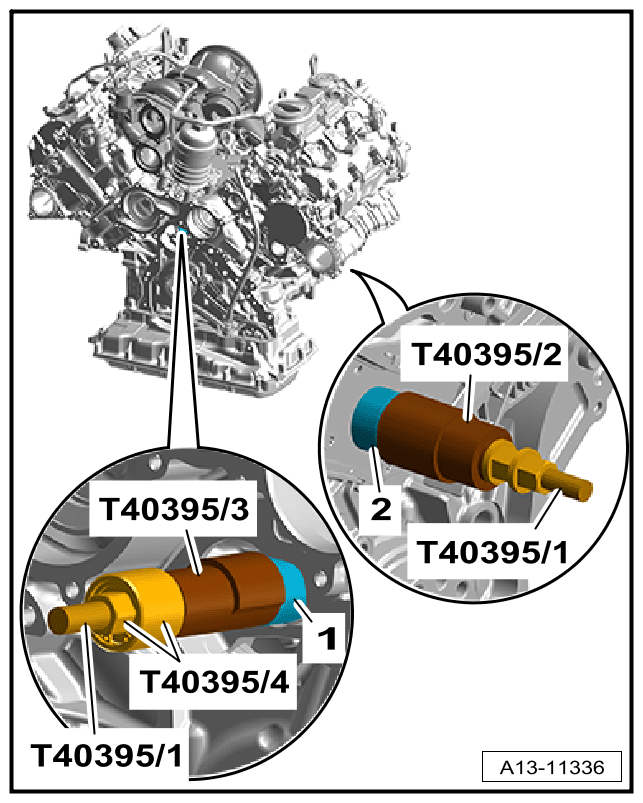

3. Insert roller bearing at the front -1-  and rear -2-  using the spindle -T40395/1-  , adapter - T40395/2-  and adapter -T40395/3-  as far as it will go by turning the nut -T40395/4-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Using special tool T40395
