Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Install balance shaft bracing wheel.
> WM, 138019 REMOVING AND INSTALLING BALANCE SHAFT BRACING WHEEL (V6 TURBO)

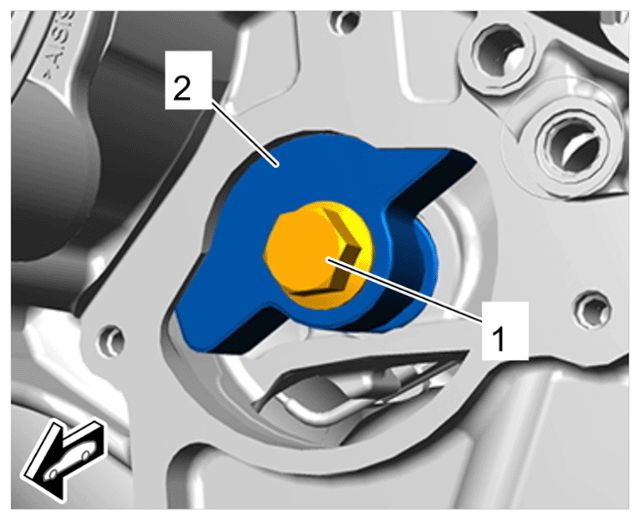

Fit new screw -1- on balance weight -2- .
1. 2.1 Get another person to counter the crankshaft if necessary.
2. 2.2 Counter the crankshaft using > T40049 - special wrench , fit new screw -1- and tighten to > Initial tightening 40 Nm (30 ftlb.) and > Torque angle + 90° .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Balance weight screw
Install crankcase cover.
> 101419 REMOVING AND INSTALLING CRANKCASE COVER (V6 TURBO)
