Subsequent Work
WARNING: This page is about a different variant/trim than selected.
- Install deflection roller for V-belt (air-conditioning compressor) -2-
.

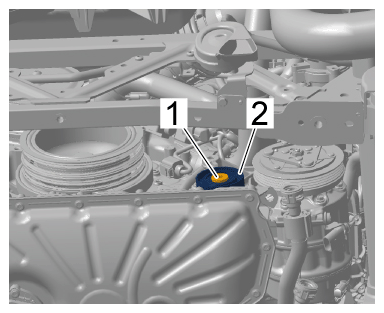

- 1.1 Fit deflection roller for V-belt (air-conditioning compressor) -2-
and screw in and tighten new screw -1-
> Tightening torque 25 Nm (19 ftlb.)
Deflection roller for V-belt (air-conditioning compressor)

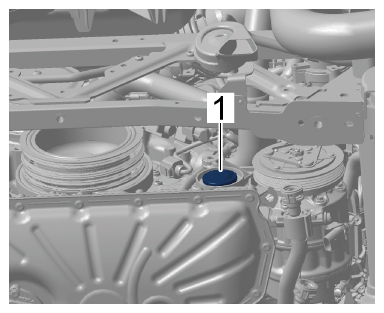

- 1.2 Install cover on deflection roller -1- .
Deflection roller cover
- 1.1 Fit deflection roller for V-belt (air-conditioning compressor) -2-
and screw in and tighten new screw -1-
> Tightening torque 25 Nm (19 ftlb.)
- Install ATF cooling line (front section).
> WM, 386219 REMOVING AND INSTALLING ATF COOLING LINE (FRONT SECTION)
- Install belt tensioner (air-conditioning compressor).
> 137319 REMOVING AND INSTALLING BELT TENSIONER (AIR-CONDITIONING COMPRESSOR)
