WM, 153519 Removing And Installing Timing Chain (V6 Turbo): Tools

WARNING: This page is about a different variant/trim than selected.

Tool denomination	Type	Tool number	Image
Wrench a/f 21	VW tool	> T40263	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
adapter	VW tool	> T40314	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

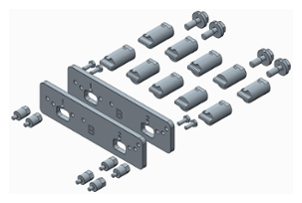

clamp camshaft	VW tool	> T40331	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

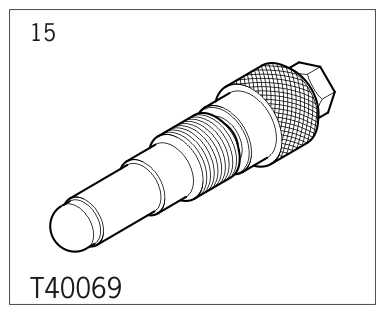

Locking pin	VW tool	> T40069	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

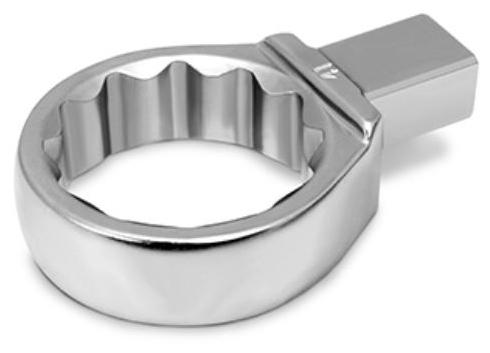

ring spanner insert, a/f 41	Vehicle-specific service equipment	> VAS 261 001	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

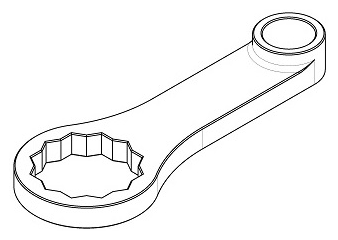

counter-hold tool	VW tool	> T90001	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

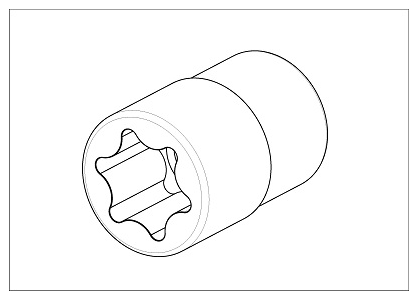

socket E24	VW tool	> T90000	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

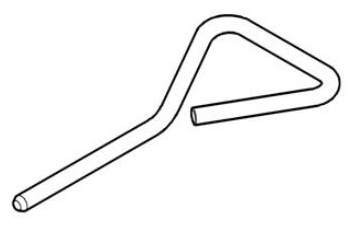

locking pin	VW tool	> T03006	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
torque wrench 6-50 Nm (4.5-37 ftlb.)	General service equipment	> V.A.G 1331A	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
counter-hold tool	VW tool	> T90002	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
