Removing Camshafts

WARNING: This page is about a different variant/trim than selected.
  1. Remove locking tools -2 to 5-  .

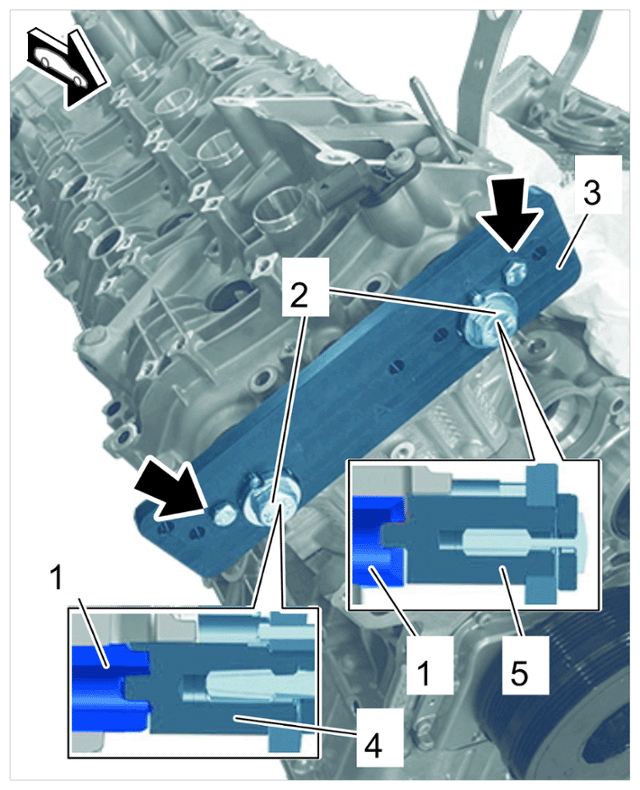

    G15821469Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Camshaft clamps

    Information

    The camshaft bearing covers and the corresponding installation positions are numbered and do not have to be marked.

  2. Remove camshafts -5 and 6-  .
    1. 2.1 Unscrew screws on camshaft bearing covers -Arrows-  .
    2. 2.2 Remove camshaft bearing covers -1 to 4-  .
    3. 2.3 Remove camshafts -5 and 6-  .

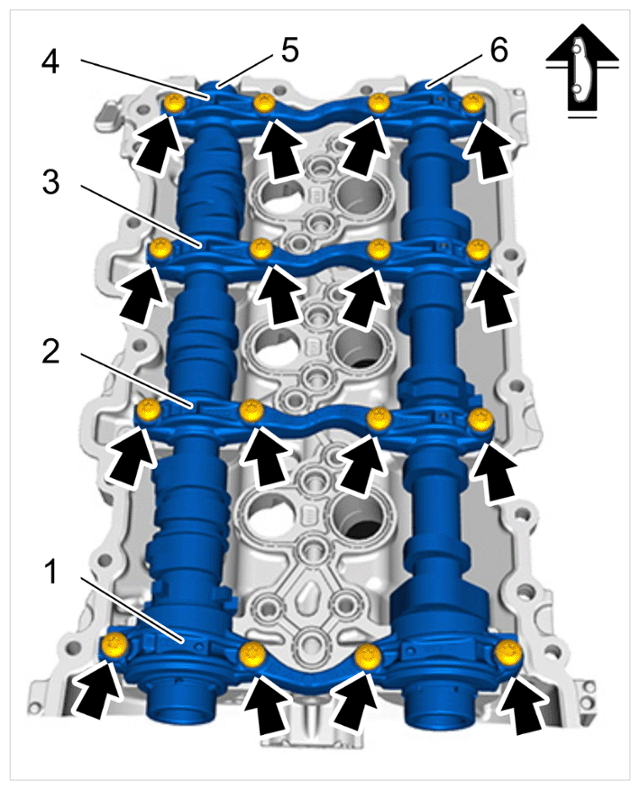

    G15821470Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Camshaft bearing covers
