Removing Brake Booster Vacuum Pump

WARNING: This page is about a different variant/trim than selected.

CAUTION: Hot components

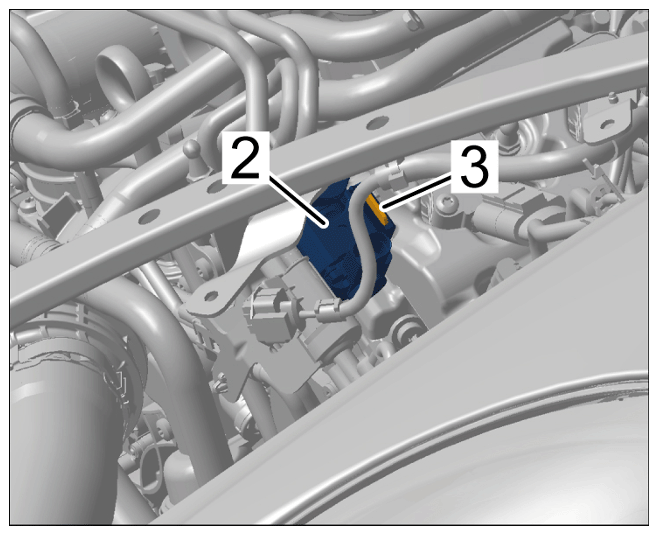

Loosen pressure converter -2- from the holder -3- and set it aside with lines connected.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting pressure converter

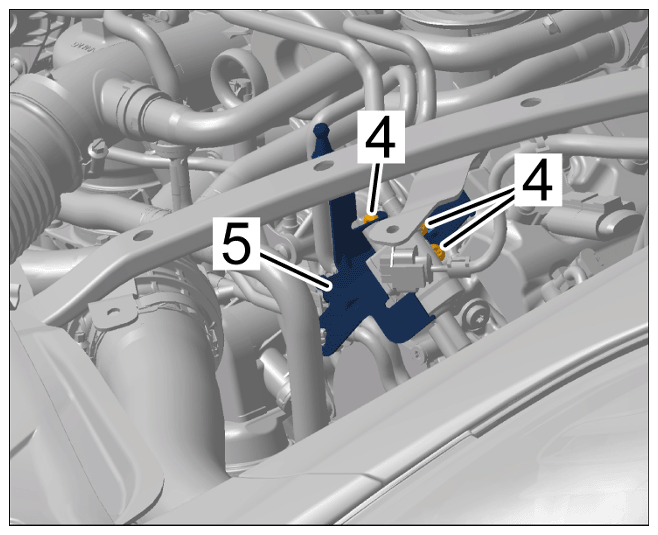

Unscrew screws -4- and move holder -5- with vacuum lines aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening holder

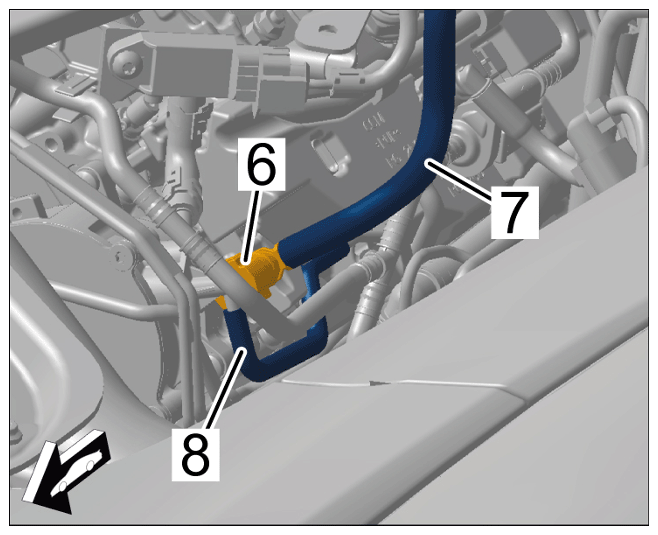

Disconnect plug connection -6- and move brake booster line -7- aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Moving brake booster line aside
Disconnect vacuum hose -8- from brake booster vacuum pump.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting vacuum hose

Information

Place a suitable cloth underneath to catch escaping oil when pulling off the vacuum pump.

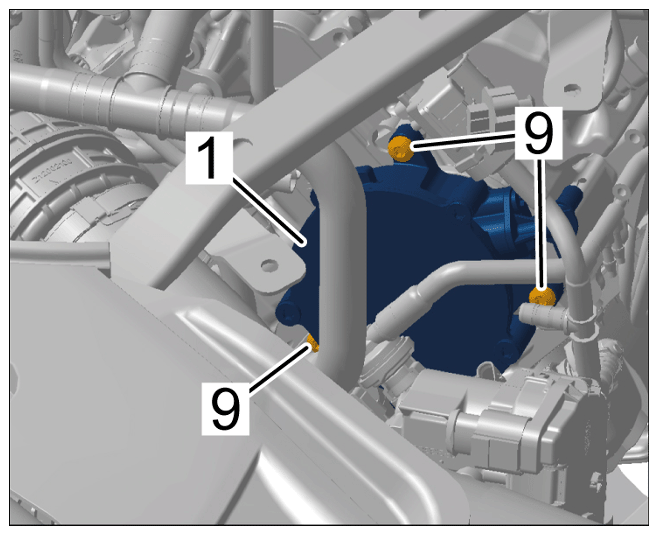

Unscrew screws -9- and remove brake booster vacuum pump -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing brake booster vacuum pump
