Technical Values

WARNING: This page is about a different car, the 2023 Porsche Panamera and 2022 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Location	Des...	Type	Basic val...
Rear lid adjusting element screw	Item 1	Tightening torque	6 Nm (4.4 ftlb.)

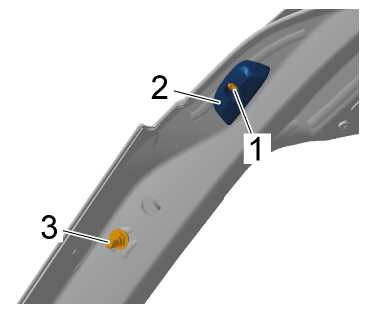

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for rear lid adjusting element
Rear cover ball pin	Item 3	Tightening torque	23 Nm (17 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ball pin on rear lid
Nut on wiper motor holder	Item 11	Tightening torque	8 Nm (5.9 ftlb.)

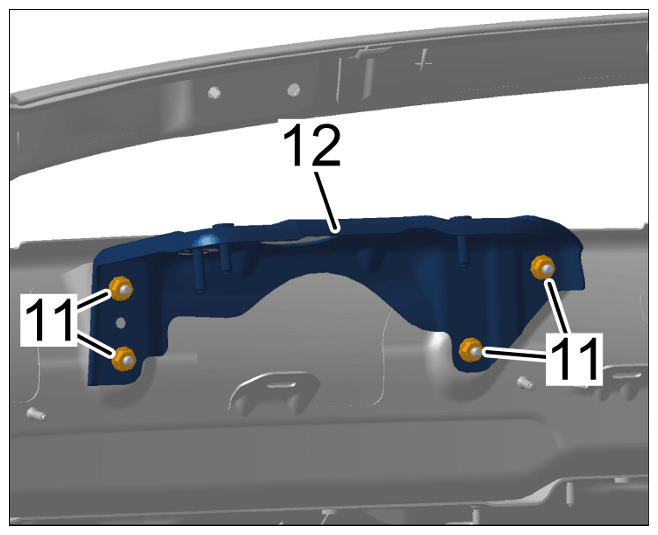

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing retaining bracket for windscreen wiper motor
Screw for water drain sleeve on spoiler drive	Item 5	Tightening torque	4 Nm (3 ftlb.)

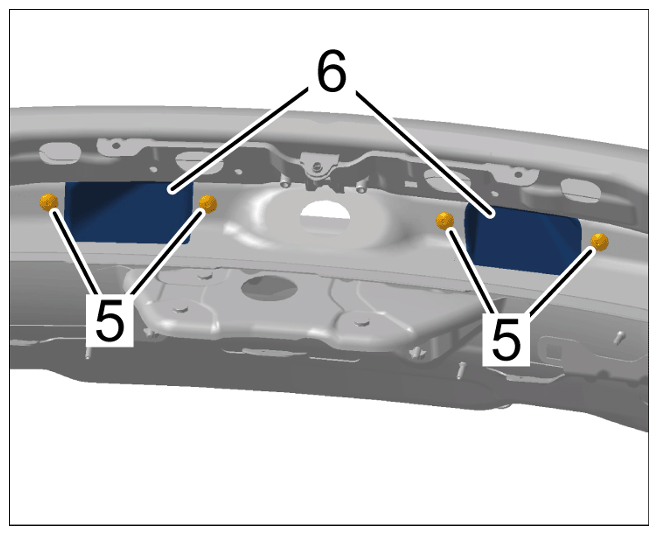

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for water drain sleeve on spoiler drive
