Technical Values

WARNING: This page is about a different car, the 2023 Porsche Panamera and 2022 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
Location Descri... Type Basic value Tolerance 1 Tolerance 2
Screws securing tailgate hinge to rear lid Item 1 Tightening torque 10 Nm (7.4 ftlb.)

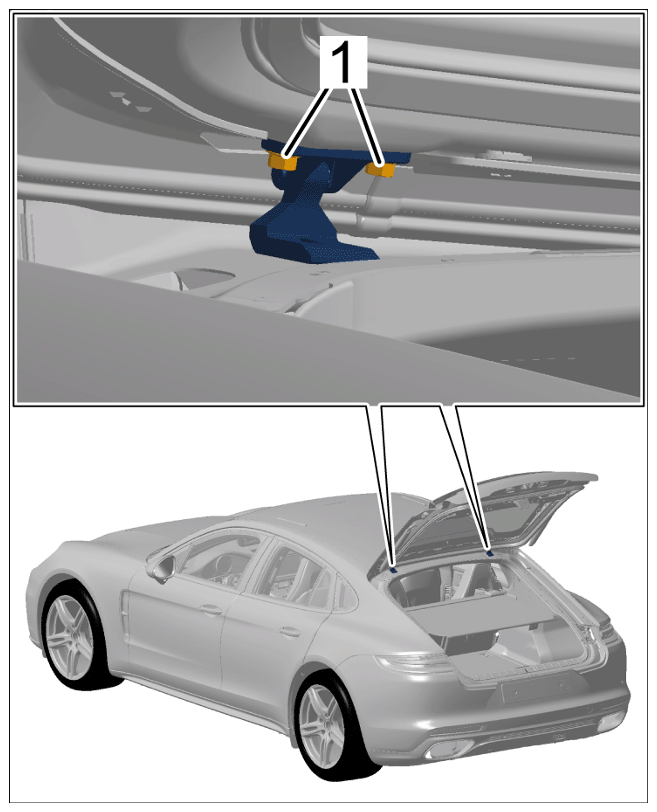

G15863044Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing tailgate hinge to rear lid
