Removing Rear Lock Upper Part

WARNING: This page is about a different car, the 2023 Porsche Panamera and 2022 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Moving components

Danger of limbs being trapped or severed
→ Do not reach into the danger area.

→ Secure the system to prevent it from being activated accidentally.

→ Keep third parties away from the danger area.

Information

When removing the upper part of the lock using a closing aid, first disconnect the plug connection for the power supply.
This prevents the closing aid motor from starting up while you are disconnecting the plug connection/control system.

Switch off ignition and remove remote control.

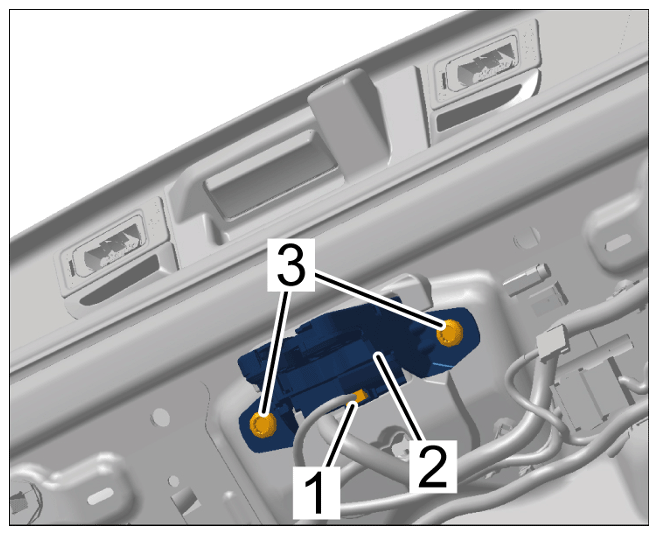

Unscrew screws -3- and detach upper part of rear lock -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing screws
Release electric plug connection -1- and disconnect it from upper part of rear lock -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection

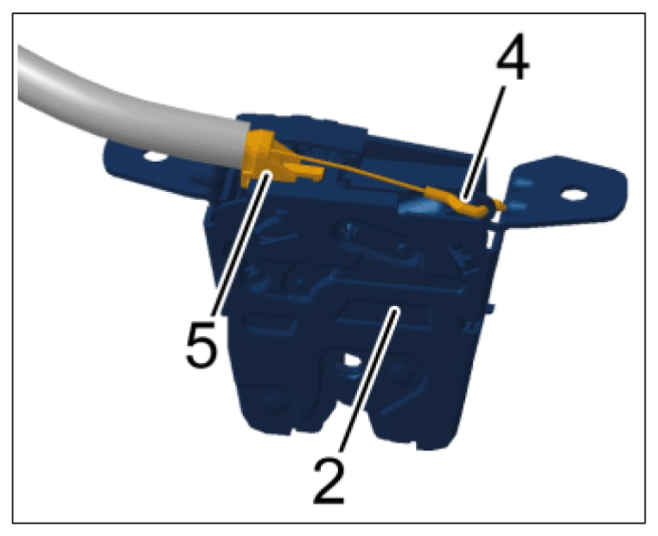

Disengage bowden cable -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bowden cable

4.1 Unclip bowden cable -4- at the holder -5- .
4.2 Disengage bowden cable -4- from rear lock upper part -2- .
