Removing Rear Lid Release

WARNING: This page is about a different car, the 2023 Porsche Panamera and 2022 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove foam part -1-  .

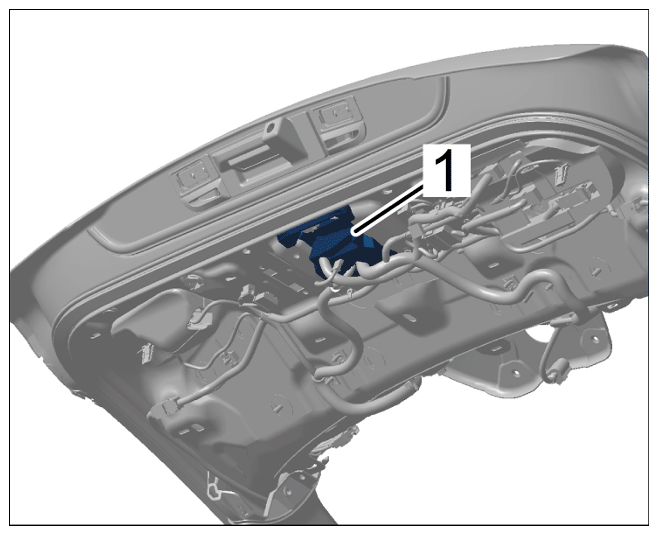

    G15862990Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing foam part

  2. Release and disconnect electric plug connection -2-  .

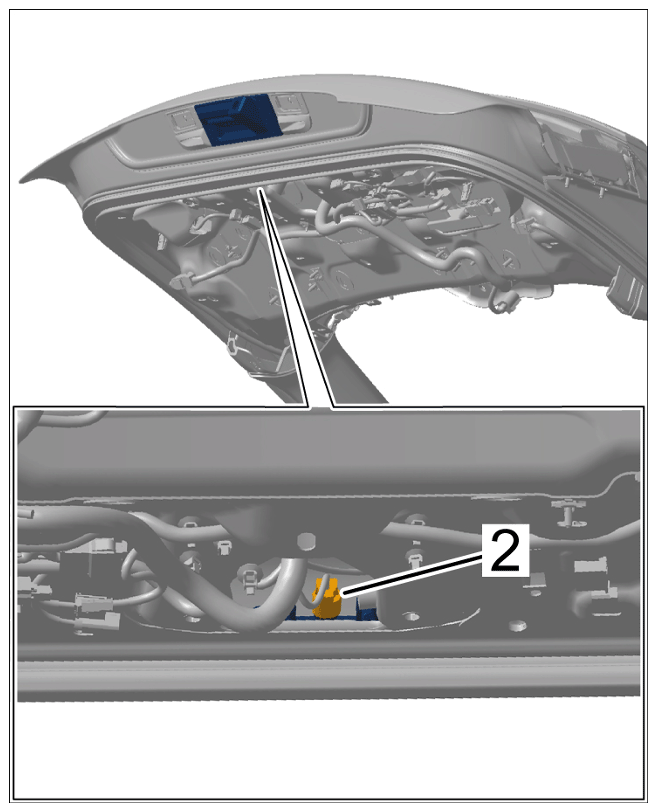

    G15862991Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Releasing and disconnecting electric plug connection

  3. For vehicles with reversing camera (I-no. 7X6 or 7X8):

    Release and disconnect electric plug connection on reversing camera.

  4. Press wire harness aside.
  5. Screw off nut -3-  .

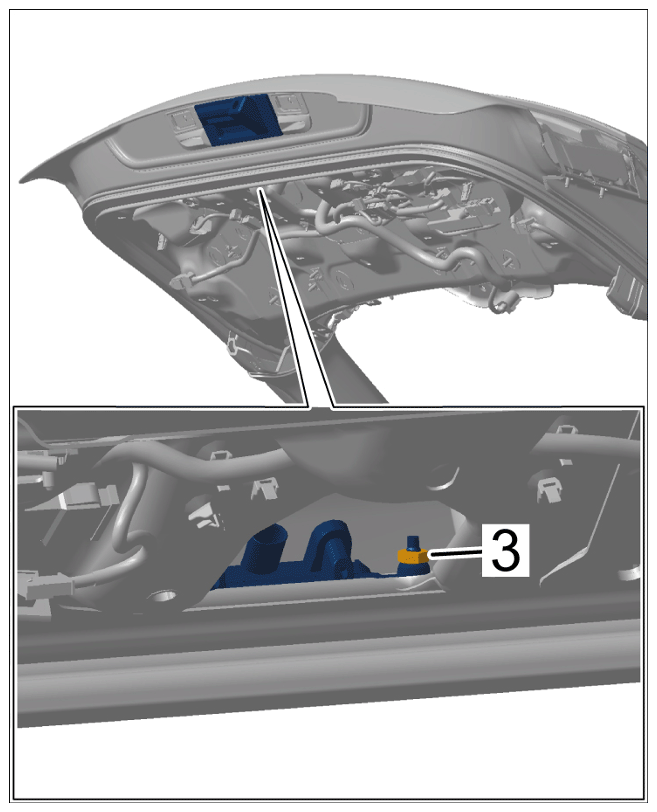

    G15862992Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unscrewing nut

  6. Unscrew rear lid release -4-  from the tailgate and remove it.

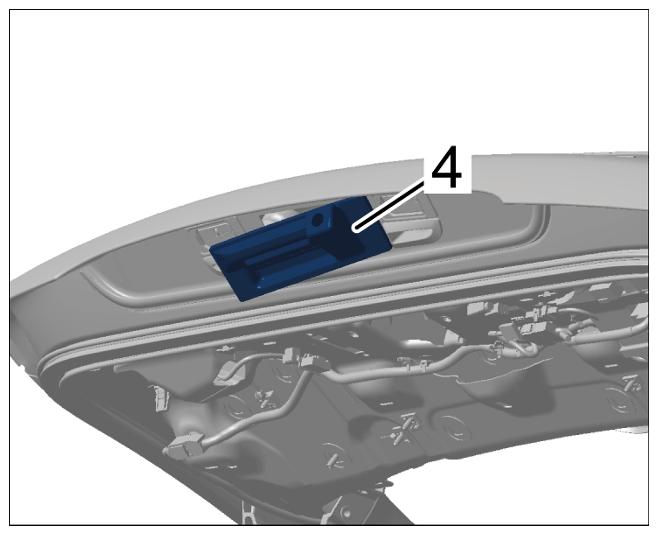

G15862993Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing rear lid release
