Removing Front Lid Release

WARNING: This page is about a different car, the 2023 Porsche Panamera and 2022 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

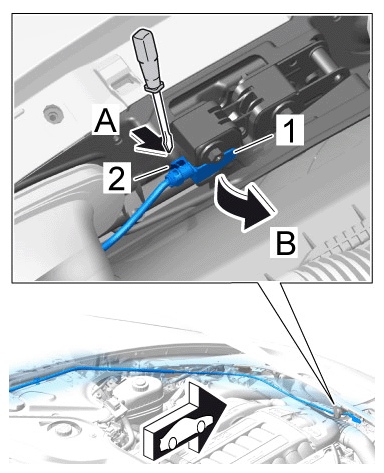

  1. Unclip front lid lock cable -1-  at front lock lower part.
    1. 1.1 Release locking lug -2-  on front lid lock cable -1-  (-arrow A-  ).
    2. 1.2 Unclip front lid lock cable -1-  (-arrow B-  ).
    G15862910Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unclipping cable at lower part of lock

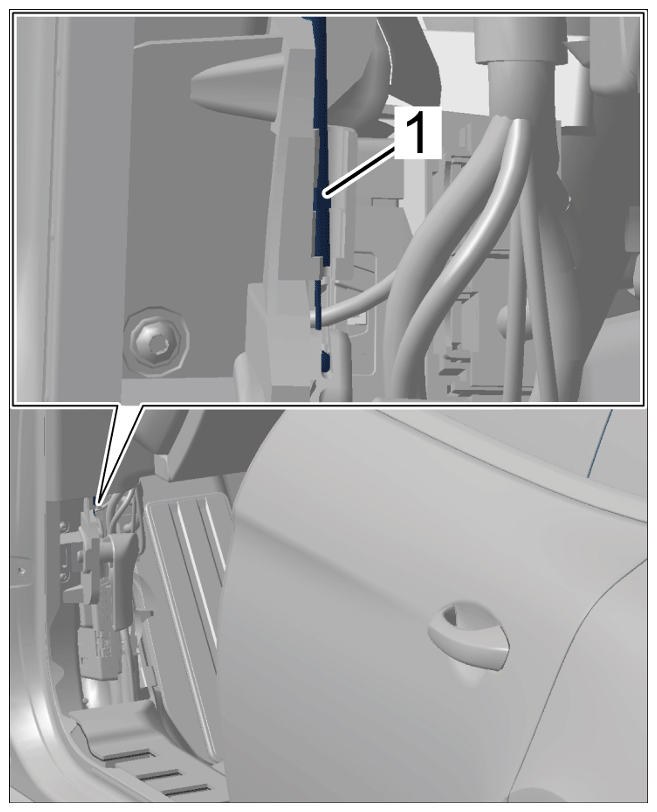

  2. Disconnect front lid lock cable -1-  at the release mechanism.
    1. 2.1 Unclip guide tube at the release mechanism and swivel front lid lock cable -1-  out.
    2. 2.2 Guide front lid lock cable -1-  out of the bracket.
    G15862911Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Disconnecting cable at release mechanism

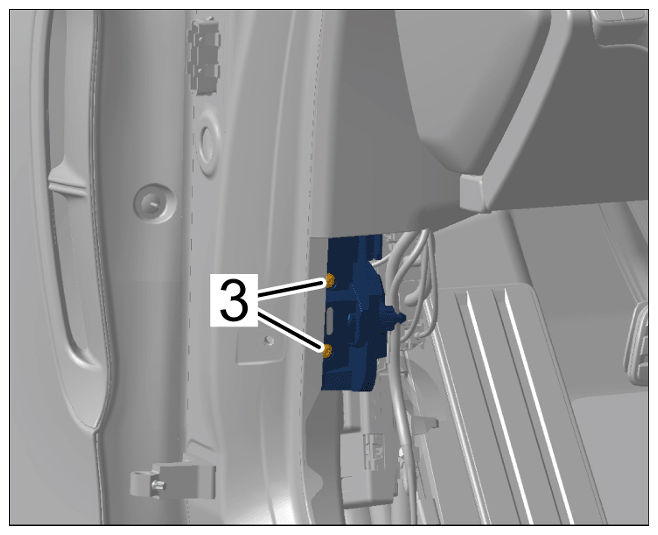

  3. Unscrew and remove screws -3-  .
    G15862912Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unscrewing screws

  4. Remove front lid release.
