Installing Side Section Flap (Module)
WARNING: This page is about a different car, the 2023 Porsche Panamera and 2022 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
Information

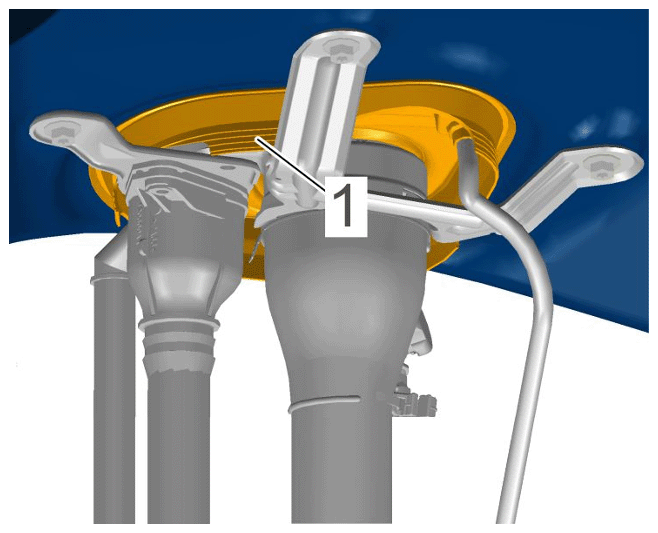

Check that the rubber sleeve -1-
is fitted correctly.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Rubber sleeve on filler flap (module)
- Affix a continuous length of about 3 mm
butyl cord -1-
all around the side section flange.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Butyl cord

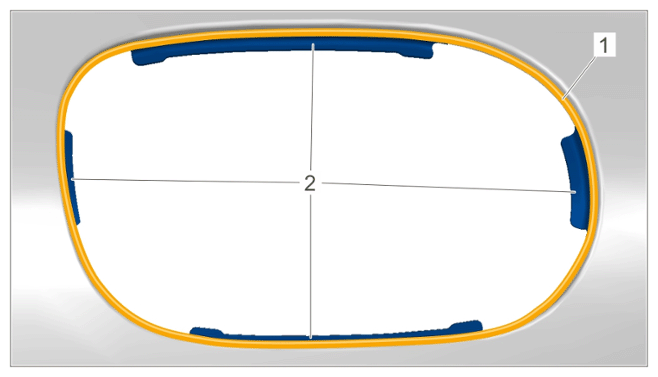

- 1.1 Affix butyl cord -1-
in such a way that areas -2-
remain clean.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Butyl cord
- The remaining installation steps are performed in reverse order.
- Check side section flap (module) for leaks.
