Installing Front Lid Seal

WARNING: This page is about a different car, the 2023 Porsche Panamera and 2022 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

Before refitting the seal, check it for damage and replace it if necessary.
Fit seal without additional sealing compound.
During installation, keep the seal away from hot engine components because otherwise the seal can become damaged.

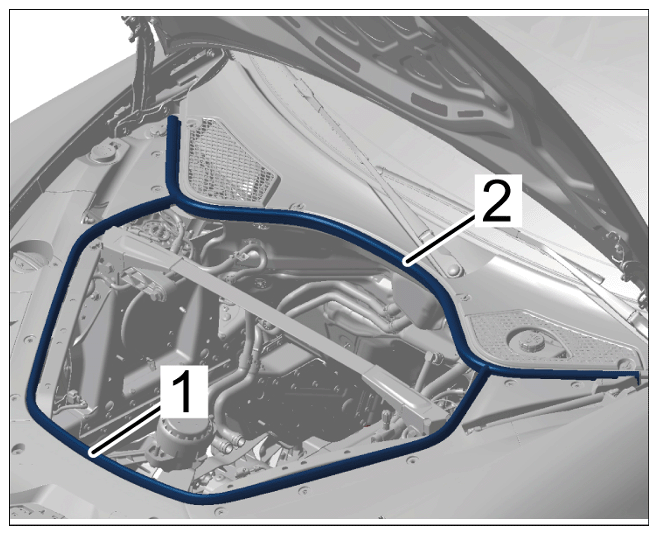

Centre the rear seal -2- on the plenum panel and starting at the centre, press it onto the cowl panel.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing rear lid seal
First fit the ends of the front seal -1- and then press the remaining centre part on evenly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing front lid seal
