Installing Front Lock Upper Part

Information

Replace nuts following removal.

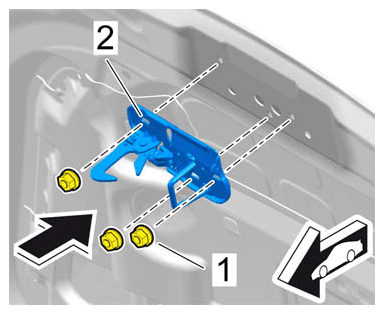

1. Position front lock upper part -2-  and fit nuts -1-  by hand.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing front lock upper part

2. Close the lid slowly until the clip -1-  for the upper part of the lock at the front is touching the lower part of the lock.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

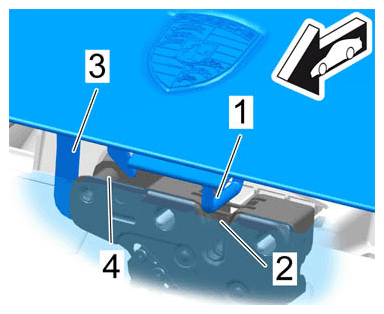

   Checking position

3. Position front lock upper part so that the clip -1-  is centred and flush with slot -2-  in the lower part of the lock.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Adjusting upper part of lock

4. Open the lid again and tighten nuts > Tightening torque 12 Nm (8.9 ftlb.)
