Component Overview

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

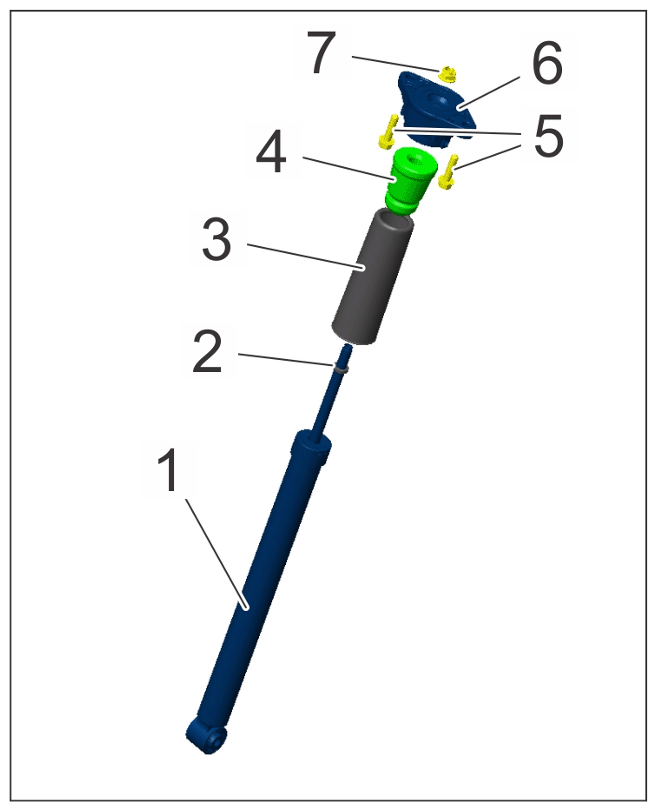

Fig 1: Rear Shock Absorber And Spring Damper Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Individual components of rear shock absorber/spring damper

1	Spring damper/shock absorber
2	Support washer
3	Boot
4	Rubber stop
5	Screws, M10 x 42
6	Shock absorber mounting
7	Nut, M14
