Subsequent Work

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Install connecting link.
> 429119 REMOVING AND INSTALLING CONNECTING LINK FOR ANTI-ROLL BAR

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

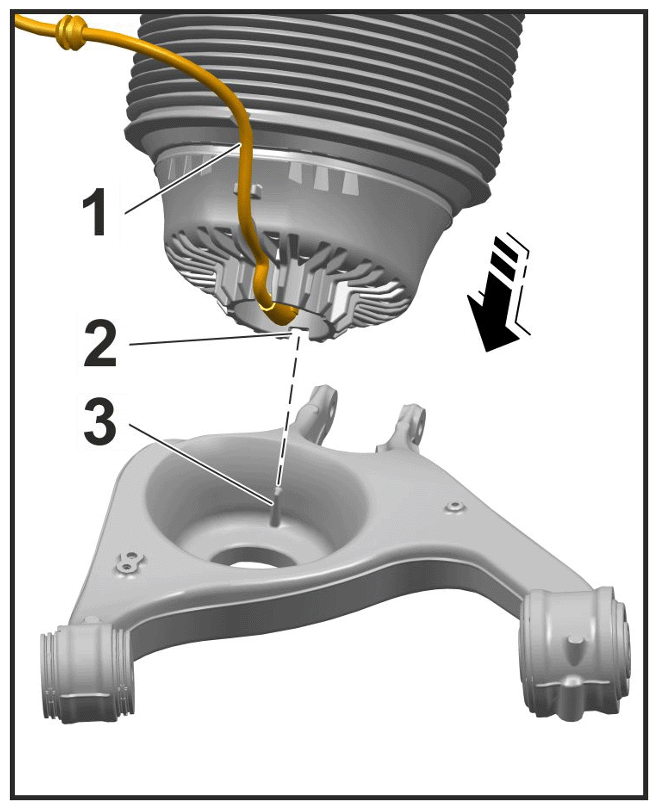

Positioning air spring bellows in trailing arm
- The air spring bellows may only be filled if it was already positioned correctly in the trailing arm (to do this, lift lower trailing arm using lifting equipment) >Positioning air spring bellows in trailing arm .
- Align air spring bellows with groove -2- at the lug -3- of the trailing arm.
Fill air spring bellows.
> 430117 BLEEDING AND FILLING THE LEVELLING SYSTEM
Visually inspect the rear air spring bellows.
Rolling creases in the protective boot must be removed correctly (no kinks)!
