Technical Values

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Location	Des...	Type	Basic val...
Air line to valve unit	Item 3: Union nut (air connection 6 mm)	Tightening torque	3 Nm (2 ftlb.)

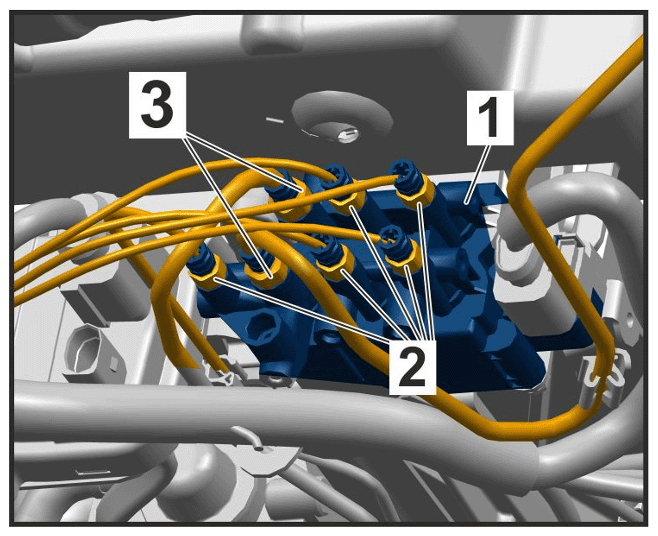

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for air lines on valve unit
Air line to valve unit	Item 2: Union nut (air connection 4 mm)	Tightening torque	2 Nm (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for air lines on valve unit
Valve unit to holder	Item Hexagon-head bolt	Tightening torque	4.5 Nm (3 ftlb.)

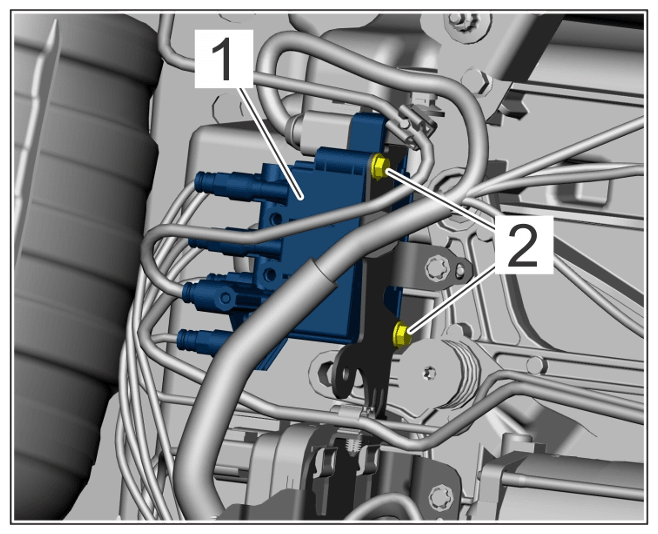

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Valve unit to holder
